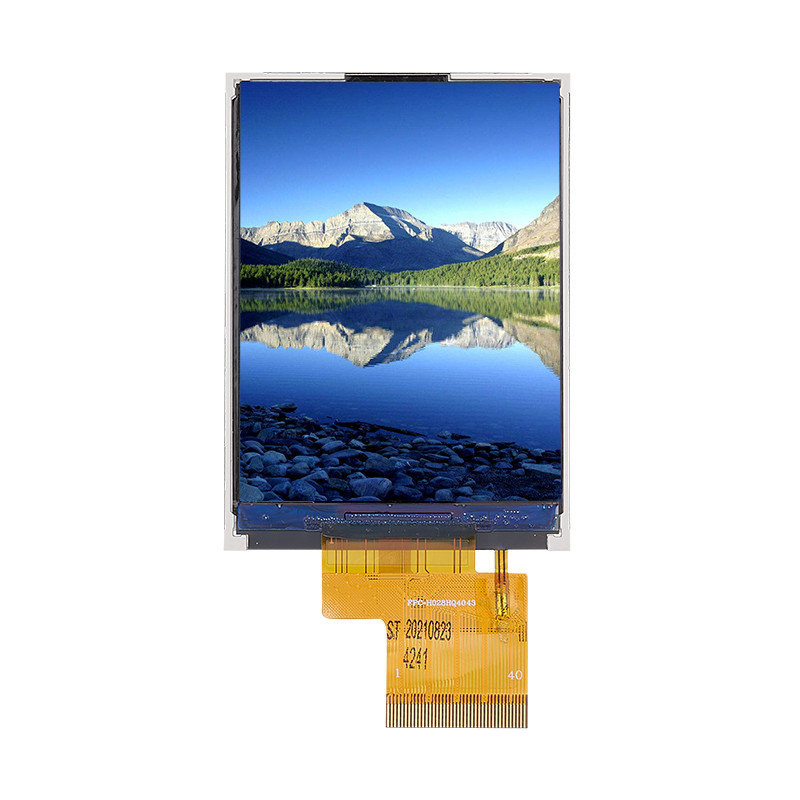

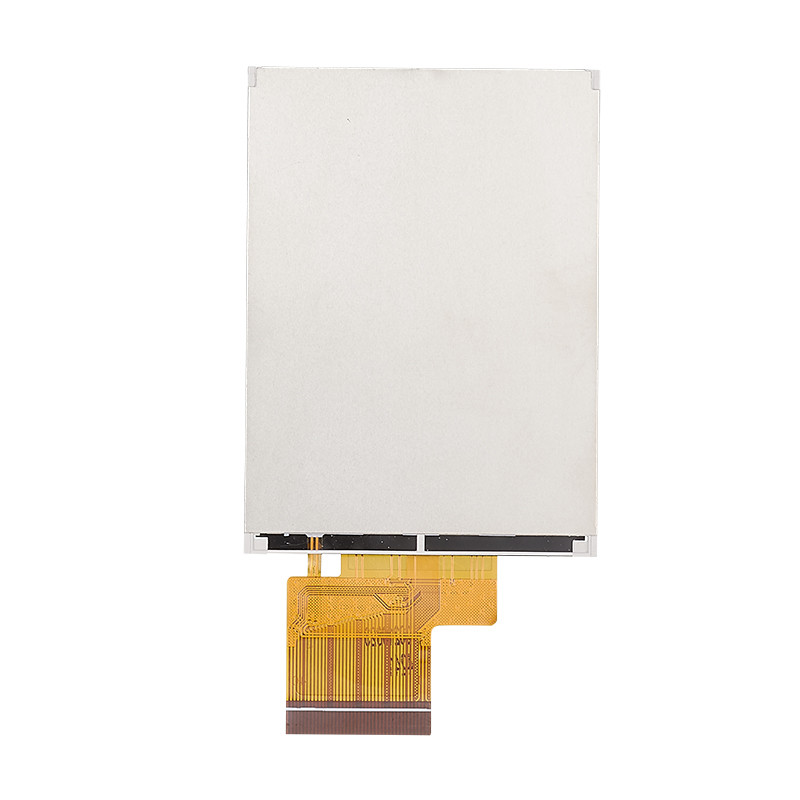

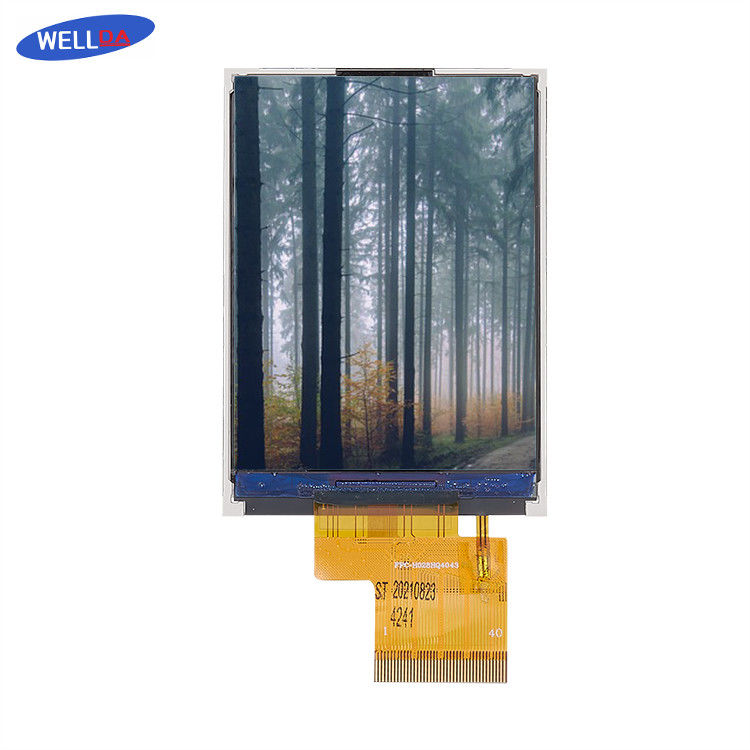

1.77" QQVGA Compact LCD Display With 2 White LED Backlighting
Contact Person : Mr. Zhu
Phone Number : +8613760373914
Detail Information |
|||
Keywords: | 2.8 Inch Small LCD Display | Size: | 2.8inch |
---|---|---|---|
Resolution: | 240(horizontal)*320(Vertical) | Interface: | RGB |
Connect Type: | Connector | Display Colors: | 65K |
Technology Type: | A-Si | Pixel Pitch (mm): | 0.180x 0.180 |
Pixel Configuration: | R.G.B.Stripe | Display Mode: | Normally White |
Driver IC: | ST7789V | Viewing Direction: | 6 O’clock |
Gray Scale Inversion Direction: | 12 O’clock | LCM (W X H X D) (mm): | 50*69.2*2.3 |
Active Area(mm): | 43.2*57.6 | With /Without TSP: | Without |
Weight (g): | 13 G | LED Numbers: | 4LEDs |
Product Description
Experience Stunning Visuals With 28 Inch Small LCD Display High Resolution 65K Colors
Small Lcd Display Description:
The 2.8 Inch Small LCD Display offers a stunning viewing experience with a high resolution of 240(horizontal) by 320(vertical) pixels. This display brings your visuals to life, showcasing 65K colors for vibrant and vivid imagery. An RGB interface ensures smooth and efficient data communication, supporting the seamless operation of the display.
Designed with A-Si technology, this display guarantees superior image quality. The pixel configuration is R.G.B.Stripe, offering a pixel pitch of 0.180x 0.180mm, which adds to the detailed and sharp visuals. The driver IC ST7789V ensures reliable performance under the Normally White display mode.
Optimized for a viewing direction of 6 O'clock and a gray scale inversion direction of 12 O'clock, this display provides an optimal viewing experience. Despite its compact size, the display offers a large viewing area of 43.2*57.6mm, making it suitable for a variety of applications. Weighing just 13g and featuring 4 LEDs, this display is light and offers enhanced illumination, making it the ideal choice for all your display needs.
Small Lcd Display Applications:
1. Industrial Applications: In industrial settings, the Small LCD Display is used in control panels, handheld instrumentation, testing equipment, and many others due to its durability and ability to operate in harsh conditions. Their ability to withstand extreme temperatures and deliver clear images makes them ideal for such environments.
2. Automotive Applications: In automotive electronics, Small LCD Displays are used in on-board diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
Small Lcd Display Parameters:
Keywords: | 2.8 Inch Small LCD Display | Size: | 2.8inch |
---|---|---|---|
Resolution: | 240(horizontal)*320(Vertical) | Interface: | RGB |
Connect Type: | Connector | Display Colors: | 65K |
Technology Type: | A-Si | Pixel Pitch (mm): | 0.180x 0.180 |
Pixel Configuration: | R.G.B.Stripe | Display Mode: | Normally White |
Driver IC: | ST7789V | Viewing Direction: | 6 O’clock |
Gray Scale Inversion Direction: | 12 O’clock | LCM (W X H X D) (mm): | 50*69.2*2.3 |
Active Area(mm): | 43.2*57.6 | With /Without TSP: | Without |
Weight (g): | 13 G | LED Numbers: | 4LEDs |
