1.77" QQVGA Compact LCD Display With 2 White LED Backlighting
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H128160-CSL17701A |
|
Detail Information |
|||
| Name: | Small LCD Display | Keywords: | 1.77 Inch LCD Display |
|---|---|---|---|
| Screen Size(inch): | 1.77 Inch QQVGA (Diagonal) | Resolution: | 128 * 160 |
| Outline Dimension: | 34.7(W)*46.7(L)*2.35 (H)(max) | LCD Active Area: | 28.03(W)* 35.04(L) |
| Display Type: | 128*(R、G、B)* 160 Dots | LCD Type: | 12H |
| Color Configuration: | R.G.B. Vertical Stripe | Backlight: | 150 Cd/m2 (Typ.) |
| Lnterface: | 4W SPI / Customized | Driver LC: | ST7735S |
| LED Pcs: | 2 Pcs | Viewing Direction: | 12 O'clock |
| High Light: | LCD Small Display 1.77 Inch,LCD Small Display 128x160,1.77 Inch Small Digital Screen |
||
Product Description

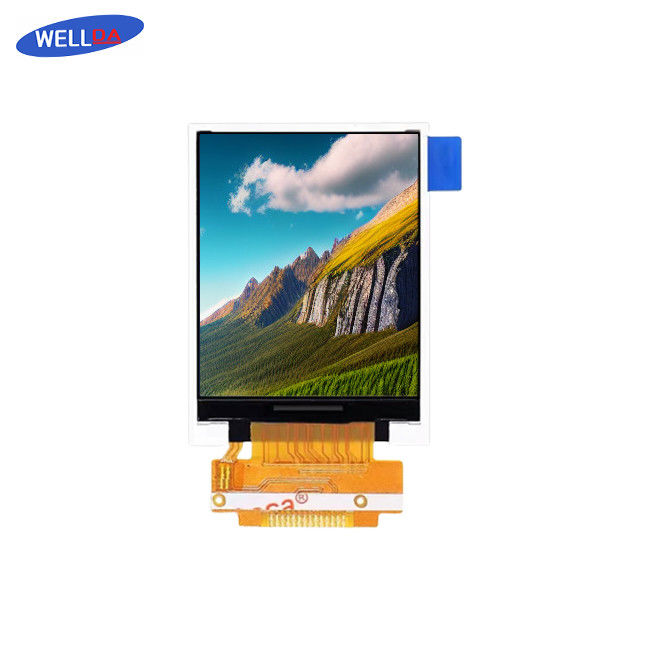

1.77 Inch Portable LCD Display 128x160 Resolution Miniature LCD Display
Small Lcd Display Description:
Discover the power of precision visuals with our 1.77 Inch Portable LCD Display. With a resolution of 128x160, this small yet powerful LCD panel delivers incredibly detailed and vibrant images, enhancing your application's visual output. The TFT technology guarantees superb color reproduction, while the vertical stripe color arrangement provides better image clarity and color depth. The compact size coupled with the high-performing SPI interface offers flexible integration options, making it a highly versatile solution for numerous digital applications.
Our 1.77 Inch Portable LCD Display goes beyond standard display solutions. It features an efficient 2-LED backlighting system that ensures excellent visibility in various lighting conditions. The unit is powered by the robust ST7735S driver, promising stable, high-speed operation and a longer lifespan. The display's 12 O'clock viewing direction provides a superior viewing experience, reducing glare and maintaining image integrity from various angles. We also make sure our product is versatile - whether you need it for handheld devices, automotive applications, or any other compact digital system, our Portable LCD Display is up to the task. Our company's commitment to quality and customer satisfaction ensures that each purchase comes with extensive technical support and a reliable shipping process.
Small Lcd Display Applications:
This display is perfect for use in compact devices, such as handheld gadgets, IoT devices, or even for DIY electronics projects. Its SPI interface and ST7735S driver IC make it easy to integrate with different systems.
Small Lcd Display Parameters:
|
Name: |
Small LCD Display |
Keywords: |
1.77 Inch LCD Display |
|---|---|---|---|
|
Screen Size(inch): |
1.77 Inch QQVGA (Diagonal) |
Resolution: |
128 * 160 |
|
Outline Dimension: |
34.7(W)*46.7(L)*2.35 (H)(max) |
LCD Active Area: |
28.03(W)* 35.04(L) |
|
Display Type: |
128*(R,G,B)* 160 Dots |
LCD Type: |
12H |
|
Color Configuration: |
R.G.B. Vertical Stripe |
Backlight: |
2 White LED |
|
Interface: |
SPl Interface |
Driver LC: |
ST7735S |
|
LED Pcs: |
2 Pcs |
Viewing Direction: |
12 O'clock |
