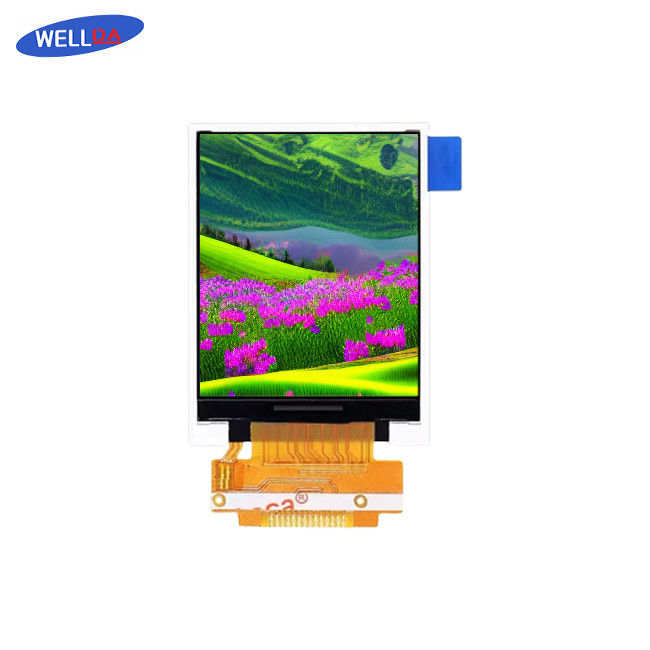

1.77" QQVGA Compact LCD Display With 2 White LED Backlighting
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H128160-CSL17701A |
|
Detail Information |
|||
| Name: | Small LCD Display | Keywords: | 1.77 Inch LCD Display |
|---|---|---|---|
| Screen Size(inch): | 1.77 Inch QQVGA (Diagonal) | Resolution: | 128 * 160 |
| Outline Dimension: | 34.7(W)*46.7(L)*2.35 (H)(max) | LCD Active Area: | 28.03(W)* 35.04(L) |
| Display Type: | 128*(R、G、B)* 160 Dots | LCD Type: | 12H |
| Color Configuration: | R.G.B. Vertical Stripe | Backlight: | 150 Cd/m2 (Typ.) |
| Lnterface: | 4W SPI / Customized | Driver LC: | ST7735S |
| LED Pcs: | 2 Pcs | Viewing Direction: | 12 O'clock |
| High Light: | WellDa Small LCD Display,Small LCD Display ISO9001,Compact LCD Screen ROHS |
||
Product Description
1.77 Inch Compact LCD Screen 128x160 Resolution Small Size LCD Panel
Small Lcd Display Description:
Bring your digital applications to life with our 1.77 Inch Compact LCD Screen. Designed for optimal performance, it features a 128x160 resolution for high-quality, detailed images. The TFT technology and vertical stripe color arrangement ensure superb color accuracy and depth, elevating the visual experience. Its compact form factor combined with the SPI interface offers easy integration and versatility across numerous applications.
Our Compact LCD Screen is not just a display, but a comprehensive solution. It incorporates a dual white LED backlight system that provides clear visibility in various lighting conditions. Powered by the reliable ST7735S driver, it ensures a stable, high-speed operation and a longer product lifespan. The display boasts a 12 O'clock viewing angle, allowing for an excellent visual experience from different perspectives. This Portable LCD Screen is perfect for a variety of applications - handheld devices, automotive, digital systems, and more, reflecting our commitment to versatility, quality, and customer satisfaction. We back our product with extensive technical support, ensuring you have the assistance you need, when you need it, alongside a secure shipping process to deliver your product safely and promptly.
Small Lcd Display Applications:
This display is perfect for use in compact devices, such as handheld gadgets, IoT devices, or even for DIY electronics projects. Its SPI interface and ST7735S driver IC make it easy to integrate with different systems.
Small Lcd Display Parameters:
|
Name: |
Small LCD Display |
Keywords: |
1.77 Inch LCD Display |
|---|---|---|---|
|
Screen Size(inch): |
1.77 Inch QQVGA (Diagonal) |
Resolution: |
128 * 160 |
|
Outline Dimension: |
34.7(W)*46.7(L)*2.35 (H)(max) |
LCD Active Area: |
28.03(W)* 35.04(L) |
|
Display Type: |
128*(R,G,B)* 160 Dots |
LCD Type: |
12H |
|
Color Configuration: |
R.G.B. Vertical Stripe |
Backlight: |
2 White LED |
|
Interface: |
SPl Interface |
Driver LC: |
ST7735S |
|
LED Pcs: |
2 Pcs |
Viewing Direction: |
12 O'clock |
