1.77" QQVGA Compact LCD Display With 2 White LED Backlighting
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H128160-CSL17701A |
|
Detail Information |
|||
| Name: | Small LCD Display | Keywords: | 1.77 Inch LCD Display |
|---|---|---|---|
| Screen Size(inch): | 1.77 Inch QQVGA (Diagonal) | Resolution: | 128 * 160 |
| Outline Dimension: | 34.7(W)*46.7(L)*2.35 (H)(max) | LCD Active Area: | 28.03(W)* 35.04(L) |
| Display Type: | 128*(R、G、B)* 160 Dots | LCD Type: | 12H |
| Color Configuration: | R.G.B. Vertical Stripe | Backlight: | 150 Cd/m2 (Typ.) |
| Lnterface: | 4W SPI / Customized | Driver LC: | ST7735S |
| LED Pcs: | 2 Pcs | Viewing Direction: | 12 O'clock |
| High Light: | Small LCD Display 1.77 Inch,OEM Small LCD Display,small lcd monitor Stripe Color |
||
Product Description

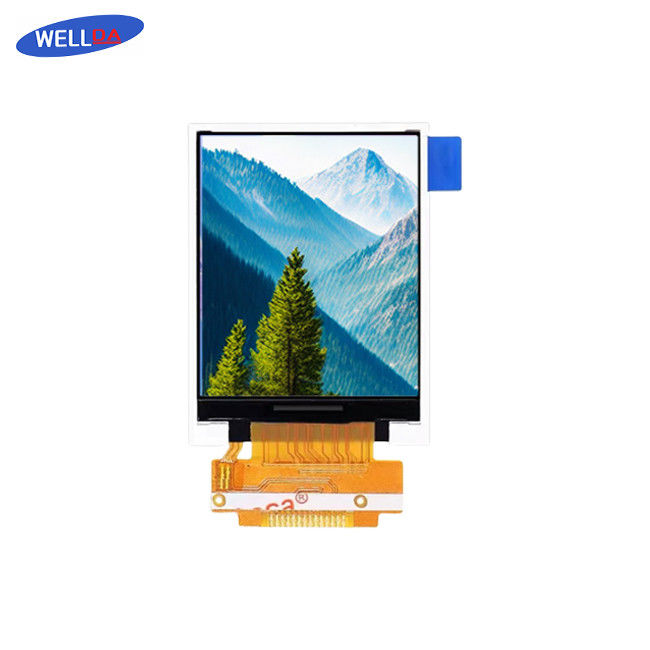

1.77 Inch Small LCD Display 128x160 Resolution TFT Panel Vertical Stripe Color
Small Lcd Display Description:
Dive into the world of vibrant and crisp visuals with our 1.77 Inch Small LCD Display. Featuring a 128x160 resolution, this TFT Panel is designed to deliver rich, detailed images for your various applications. The Small LCD Display is expertly designed with a vertical stripe color configuration to ensure high-quality image reproduction, making it a robust choice for your portable display needs.
Our Small LCD Display is not just about superior performance. It also stands out for its convenience and easy integration thanks to the SPI interface. Paired with our outstanding customer service and technical support, we offer a comprehensive solution for your display needs. Each product is carefully packaged and shipped to ensure it arrives at its destination in perfect condition, ready to deliver the high performance you expect from our products. Whether you have a question or need assistance, we are always ready to help, providing an unmatched level of service for your absolute satisfaction.
Small Lcd Display Applications:
This display is perfect for use in compact devices, such as handheld gadgets, IoT devices, or even for DIY electronics projects. Its SPI interface and ST7735S driver IC make it easy to integrate with different systems.
Small Lcd Display Parameters:
|
Name: |
Small LCD Display |
Keywords: |
1.77 Inch LCD Display |
|---|---|---|---|
|
Screen Size(inch): |
1.77 Inch QQVGA (Diagonal) |
Resolution: |
128 * 160 |
|
Outline Dimension: |
34.7(W)*46.7(L)*2.35 (H)(max) |
LCD Active Area: |
28.03(W)* 35.04(L) |
|
Display Type: |
128*(R,G,B)* 160 Dots |
LCD Type: |
12H |
|
Color Configuration: |
R.G.B. Vertical Stripe |
Backlight: |
2 White LED |
|
Interface: |
SPl Interface |
Driver LC: |
ST7735S |
|
LED Pcs: |
2 Pcs |
Viewing Direction: |
12 O'clock |
