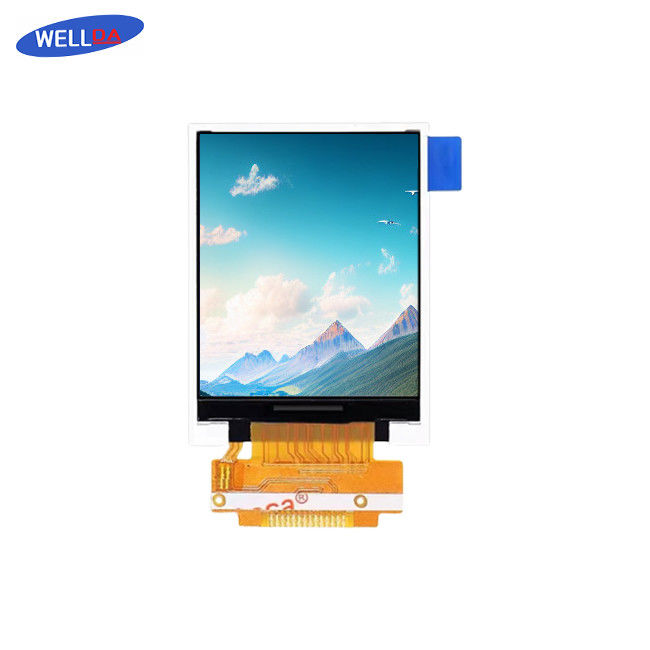

1.77" QQVGA Compact LCD Display With 2 White LED Backlighting
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H128160-CSL17701A |
|
Detail Information |
|||
| Name: | Small LCD Display | Keywords: | 1.77 Inch LCD Display |
|---|---|---|---|
| Screen Size(inch): | 1.77 Inch QQVGA (Diagonal) | Resolution: | 128 * 160 |
| Outline Dimension: | 34.7(W)*46.7(L)*2.35 (H)(max) | LCD Active Area: | 28.03(W)* 35.04(L) |
| Display Type: | 128*(R、G、B)* 160 Dots | LCD Type: | 12H |
| Color Configuration: | R.G.B. Vertical Stripe | Backlight: | 150 Cd/m2 (Typ.) |
| Lnterface: | 4W SPI / Customized | Driver LC: | ST7735S |
| LED Pcs: | 2 Pcs | Viewing Direction: | 12 O'clock |
| High Light: | 150 Cd/M2 Small LCD Display,Small LCD Display 1.77'',SPI Interface Tiny Lcd Screen |
||
Product Description
1.77 Inch Small LCD 128x160 TFT Display With SPI Interface
Small Lcd Display Description:
Experience the vivid, detailed visuals of our 1.77 Inch Small LCD Display. Boasting a resolution of 128x160 pixels, this compact and high-quality display ensures a rich viewing experience for any application. Its TFT panel coupled with the vertical stripe color configuration delivers excellent color quality and clarity. The easy-to-integrate SPI interface further broadens its versatility, making it an exceptional choice for varied applications.
We pride ourselves on providing superior customer service for our Small LCD Display products. Our dedicated technical support team is always on hand to help with product installation, troubleshooting, or any technical queries you may have. We also place a high priority on the safe packaging and delivery of our products. Each unit is carefully packed, accurately labeled, and shipped through reliable carriers. We're committed to ensuring a hassle-free purchase and usage experience for all our customers.
Small Lcd Display Applications:
This display is perfect for use in compact devices, such as handheld gadgets, IoT devices, or even for DIY electronics projects. Its SPI interface and ST7735S driver IC make it easy to integrate with different systems.
Small Lcd Display Parameters:
|
Name: |
Small LCD Display |
Keywords: |
1.77 Inch LCD Display |
|---|---|---|---|
|
Screen Size(inch): |
1.77 Inch QQVGA (Diagonal) |
Resolution: |
128 * 160 |
|
Outline Dimension: |
34.7(W)*46.7(L)*2.35 (H)(max) |
LCD Active Area: |
28.03(W)* 35.04(L) |
|
Display Type: |
128*(R,G,B)* 160 Dots |
LCD Type: |
12H |
|
Color Configuration: |
R.G.B. Vertical Stripe |
Backlight: |
2 White LED |
|
Interface: |
SPl Interface |
Driver LC: |
ST7735S |
|
LED Pcs: |
2 Pcs |
Viewing Direction: |
12 O'clock |
