1.77" QQVGA Compact LCD Display With 2 White LED Backlighting
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H128160-CSL17701A |
|
Detail Information |
|||
| Name: | Small LCD Display | Keywords: | 1.77 Inch LCD Display |
|---|---|---|---|
| Screen Size(inch): | 1.77 Inch QQVGA (Diagonal) | Resolution: | 128 * 160 |
| Outline Dimension: | 34.7(W)*46.7(L)*2.35 (H)(max) | LCD Active Area: | 28.03(W)* 35.04(L) |
| Display Type: | 128*(R、G、B)* 160 Dots | LCD Type: | 12H |
| Color Configuration: | R.G.B. Vertical Stripe | Backlight: | 150 Cd/m2 (Typ.) |
| Lnterface: | 4W SPI / Customized | Driver LC: | ST7735S |
| LED Pcs: | 2 Pcs | Viewing Direction: | 12 O'clock |
| High Light: | 128x160 Small LCD Display,Small LCD Display TFT Panel,small lcd screen ST7735S |
||
Product Description

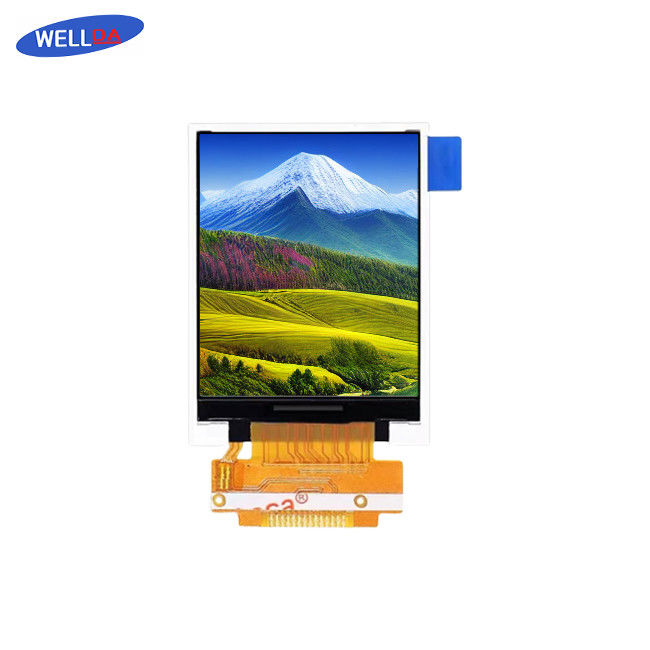

1.77 Inch Small LCD Screen 128x160 Resolution TFT Panel With SPI Interface
Small Lcd Display Description:
Immerse yourself in the world of vibrant, crisp visuals with our 1.77-inch Small LCD Display. Engineered with a resolution of 128x160 pixels, this compact display brings you a superior viewing experience, delivering rich and detailed images for any application. The vertical stripe color configuration combined with the TFT panel provides exceptional color quality and display clarity. Plus, our Small LCD Display integrates with ease due to its SPI interface, further broadening its application range.
Customer satisfaction is our top priority. We have a dedicated team of technical specialists who are always ready to provide seamless support for our Small LCD Display products. Whether it's about product installation, troubleshooting, or technical queries, we've got you covered. In addition, we follow meticulous packaging and shipping procedures to ensure that the products reach you in the best condition. Each unit is securely packed, labeled clearly, and shipped through reliable services. Experience a worry-free purchase and usage journey with our superior service and technical support.
Small Lcd Display Applications:
This display is perfect for use in compact devices, such as handheld gadgets, IoT devices, or even for DIY electronics projects. Its SPI interface and ST7735S driver IC make it easy to integrate with different systems.
Small Lcd Display Parameters:
|
Name: |
Small LCD Display |
Keywords: |
1.77 Inch LCD Display |
|---|---|---|---|
|
Screen Size(inch): |
1.77 Inch QQVGA (Diagonal) |
Resolution: |
128 * 160 |
|
Outline Dimension: |
34.7(W)*46.7(L)*2.35 (H)(max) |
LCD Active Area: |
28.03(W)* 35.04(L) |
|
Display Type: |
128*(R,G,B)* 160 Dots |
LCD Type: |
12H |
|
Color Configuration: |
R.G.B. Vertical Stripe |
Backlight: |
2 White LED |
|
Interface: |
SPl Interface |
Driver LC: |
ST7735S |
|
LED Pcs: |
2 Pcs |
Viewing Direction: |
12 O'clock |
