TFT LCD Display Module Compact And High Quality 2.8 Inch LCD Display

Place of Origin: ShenZhen, China Brand Name: WellDA(OEM)
Certification: ROHS、ISO9001、CE Model Number: H028HQ10E2525

Detail Information

Keywords: 2.8 Inch Lcd Display Size: 2.8inch
Resolution: 240(horizontal)*320(Vertical) Interface: SPI 4 Line
Connect Type: Soldering Display Colors: 65K
Technology Type: A-Si Pixel Pitch (mm): 0.153x 0.153
Pixel Configuration: R.G.B.Stripe Display Mode: Normally White
Driver IC: ST7789V Viewing Direction: 6 O’clock
Gray Scale Inversion Direction: 12 O’clock LCM (W X H X D) (mm): 50*69.2*2.3
Active Area(mm): 43.2*57.6 With /Without TSP: Without
Weight (g): 10 G LED Numbers: 4LEDs

Product Description

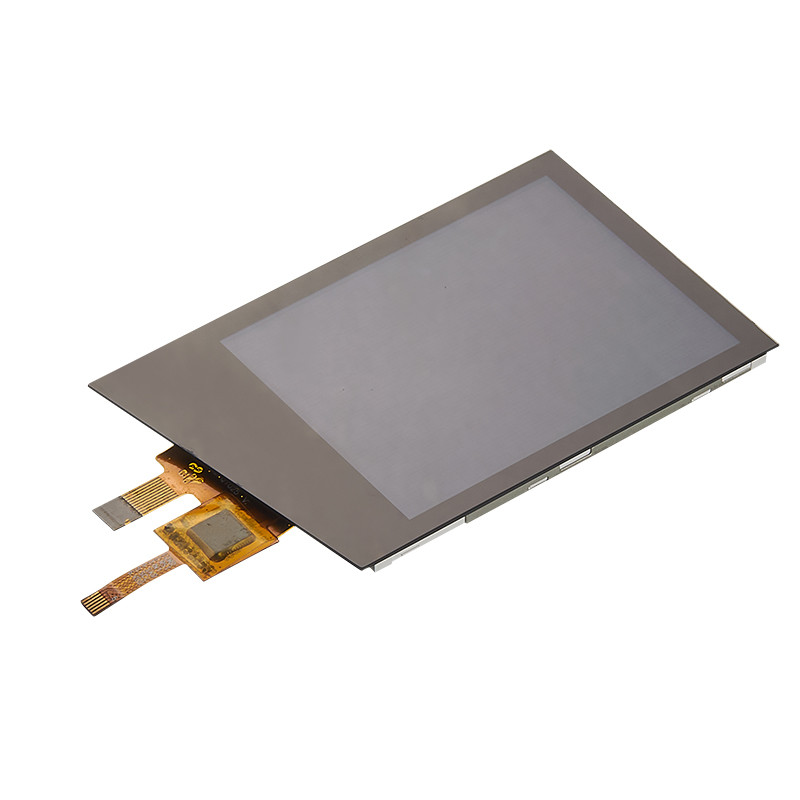

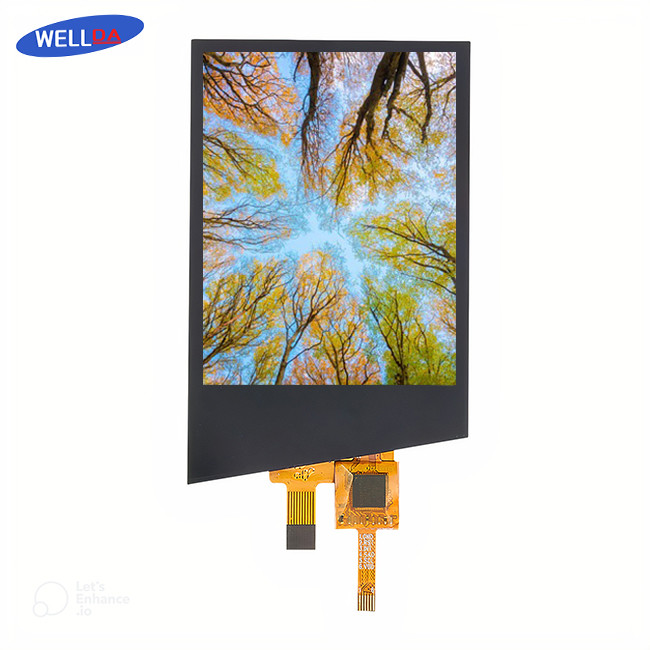

TFT LCD Display Module Compact And High Quality 2.8 Inch LCD Display



Small Lcd Display Description:



The 2.8 Inch LCD Display, with its compact design and high-quality visuals, is an ideal choice for your display needs. This display delivers a high resolution of 240(horizontal)*320(vertical) pixels, ensuring sharp and detailed images. It features a SPI 4 Line interface and soldering connectivity, offering efficient and secure data transmission.

The 2.8 Inch LCD Display boasts the ability to display 65K colors, brought to life with A-Si technology. The R.G.B.Stripe pixel configuration and a pixel pitch of 0.153x 0.153mm further contribute to high-definition visuals.

Reliable performance is ensured with the ST7789V driver IC and the Normally White display mode. With a viewing direction of 6 O'clock and a gray scale inversion direction of 12 O'clock, you get an optimal viewing experience. The compact dimensions of the LCM, measuring 5069.22.3mm, and an active area of 43.2*57.6mm, make it versatile for various applications. This lightweight 10g display, equipped with 4 LEDs, enhances illumination for better viewing, even in the absence of TSP. Choose the 2.8 Inch LCD Display for its compact size and superior visual performance.



Small Lcd Display Applications:



1. Portable Devices: These displays are a staple in portable electronics like smartphones, digital cameras, handheld gaming consoles, and GPS devices. Their compact size, high brightness, and resolution offer a superior user experience, enhancing the portability and functionality of these devices.

2. Healthcare Equipment: Small LCD Displays are also commonly found in medical devices like portable patient monitors, handheld imaging devices, and medical wearables. The high resolution and reliable performance of these displays ensure precise readings and patient data, crucial in healthcare settings.



Small Lcd Display Parameters:



Keywords: 2.8 Inch Lcd Display Size: 2.8inch
Resolution: 240(horizontal)*320(Vertical) Interface: SPI 4 Line
Connect Type: Soldering Display Colors: 65K
Technology Type: A-Si Pixel Pitch (mm): 0.153x 0.153
Pixel Configuration: R.G.B.Stripe Display Mode: Normally White
Driver IC: ST7789V Viewing Direction: 6 O’clock
Gray Scale Inversion Direction: 12 O’clock LCM (W X H X D) (mm): 50*69.2*2.3
Active Area(mm): 43.2*57.6 With /Without TSP: Without
Weight (g): 10 G LED Numbers: 4LEDs



TFT LCD Display Module Compact And High Quality 2.8 Inch LCD Display 0
