1.77" QQVGA Compact LCD Display With 2 White LED Backlighting
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDA(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H024HQ40E2543 |
|
Detail Information |
|||
| Name: | Small LCD Display | Keywords: | 2.4 Inch Lcd Display |
|---|---|---|---|
| Size: | 2.4inch | Resolution: | 240(horizontal)*320(Vertical) |
| Glass Maker: | Tianma | Interface: | 8/16-bit MCU |
| Connect Type: | Connector | Display Colors: | 65K |
| Technology Type: | A-Si | Pixel Pitch (mm): | 0.153x 0.153 |
| Pixel Configuration: | R.G.B.Stripe | Display Mode: | Normally White |
| Driver IC: | ILI9341V | Viewing Direction: | 6 O'clock |
| Gray Scale Inversion Direction: | 12 O'clock | LCM (W X H X D) (mm): | 42.72*60.26*2.3 |
| Active Area(mm): | 36.72*48.96 | With /Without TSP: | Without |
| Weight (g): | 10g | LED Number: | 4LEDs |
Product Description

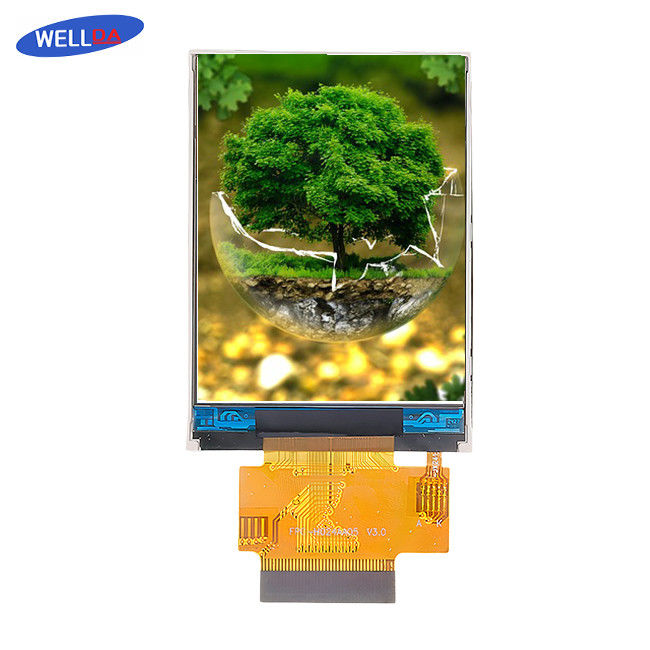

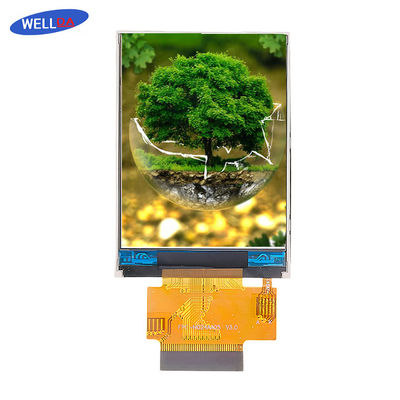

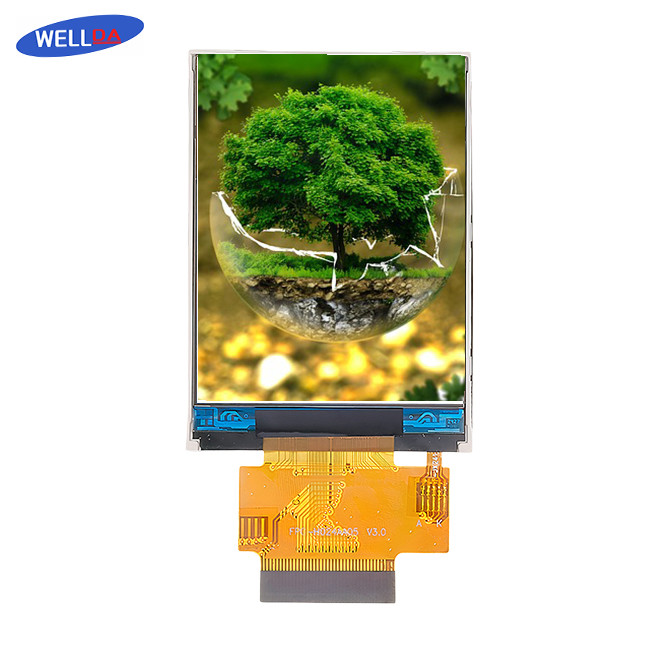

Compact High-Resolution Display - Small LCD Display 2.4 Inch LCD Display
Small Lcd Display Description:
Small LCD Display 2.4 Inch LCD Display, with a high resolution of 240(horizontal)*320(vertical) pixels, delivers clarity and detail. Using an 8/16-bit MCU interface and a connector for effortless connectivity, the display offers quality visuals crafted by glass maker Tianma. Capable of displaying 65K colors and driven by A-Si technology, it brings vibrant color to your visuals.
Small Lcd Display Applications:
1. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
2. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
Small Lcd Display Parameters:
| Name: | Small LCD Display | Keywords: | 2.4 Inch Lcd Display |
|---|---|---|---|
| Size: | 2.4inch | Resolution: | 240(horizontal)*320(Vertical) |
| Glass Maker: | Tianma | Interface: | 8/16-bit MCU |
| Connect Type: | Connector | Display Colors: | 65K |
| Technology Type: | A-Si | Pixel Pitch (mm): | 0.153x 0.153 |
| Pixel Configuration: | R.G.B.Stripe | Display Mode: | Normally White |
| Driver IC: | ILI9341V | Viewing Direction: | 6 O'clock |
| Gray Scale Inversion Direction: | 12 O'clock | LCM (W X H X D) (mm): | 42.72*60.26*2.3 |
| Active Area(mm): | 36.72*48.96 | With /Without TSP: | Without |
| Weight (g): | 10g | LED Number: | 4LEDs |
