1.77" QQVGA Compact LCD Display With 2 White LED Backlighting
Contact Person : Mr. Zhu
Phone Number : +8613760373914
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
Place of Origin: | ShenZhen, China | Brand Name: | WellDA(OEM) |
---|---|---|---|
Certification: | ROHS、ISO9001、CE | Model Number: | H024IQ40E3005 |
Detail Information |
|||
Name: | Small LCD Display | Keywords: | 2.4 Inch Lcd Display |
---|---|---|---|
Size: | 2.4 Inch | Interface: | 8/16-bit MCU |
Viewing Angle: | 6 O'clock | Brightness: | 300 Cd/m2 |
Driver Ic: | ILI9341V | Display Mode: | Normally Black |
Interface Type: | MCU | Operating Temperature: | -20----70 °C |
Display Mode: | Transmissive A-TFT | Display Format: | Graphic 240RGB*320 Dot-matrix |
Input Data: | 8bits /16bits Parallel Interface | Viewing Direction: | 12 O’clock |
Drive: | ST7789V | Dimensional Outline: | 42.72(W)*60.26(H)*2.20+/-0.1 (T) (FPC Not Include) |
LCD Active Area: | 36.72(W)*48.96(H) | Pixel Size: | 0.180(W)*0.180(H) |
High Light: | High Performance Small LCD Display,Small LCD Display CE,2.4 Inch LCD Display CE |
Product Description

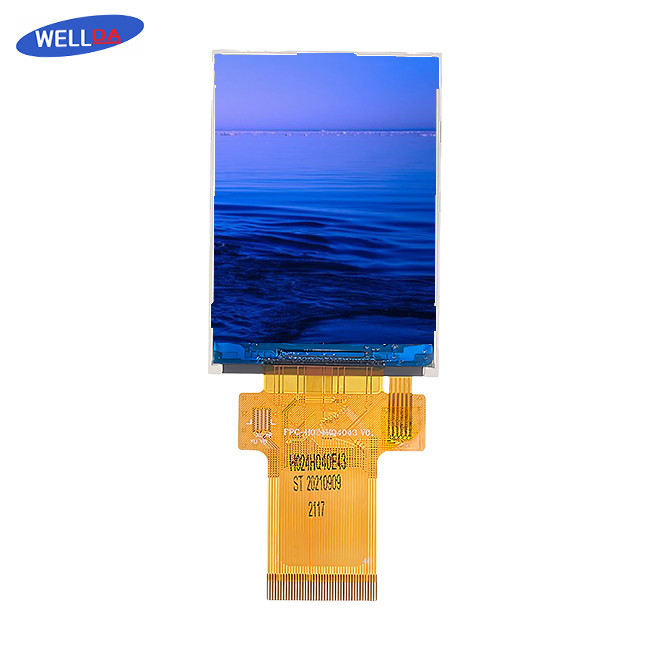

High-Performance Visuals With Small LCD Display 2.4 Inch LCD Display
Small Lcd Display Description:
The Small LCD Display 2.4 Inch LCD Display exemplifies superior visual technology. Integrating an 8/16-bit MCU interface, it provides rapid data transmission for an enhanced viewing experience. The 6 O'clock viewing angle and a commendable brightness of 300 cd/m2 deliver clear and vivid visuals in diverse lighting environments. Powered by the robust ILI9341V driver IC and ST7789V drive, this display consistently produces high-quality images.
Despite its compact size, with dimensions of 42.72(W)*60.26(H)*2.20+/-0.1 (T) excluding the FPC, it hosts an active LCD area of 36.72(W)48.96(H), providing a substantial viewing space. It impresses with a high resolution of 240RGB320 in a graphic dot-matrix format, with each pixel sized at 0.180(W)*0.180(H) ensuring sharp and detailed visuals.
Withstanding operational temperatures between -20 and 70 degrees Celsius, it showcases durability in various environmental conditions. Its transmissive A-TFT display mode offers high contrast imagery, making the Small LCD Display 2.4 Inch LCD Display a versatile solution for a broad spectrum of applications.
Small Lcd Display Applications:
1. Healthcare Equipment: Small LCD Displays are also commonly found in medical devices like portable patient monitors, handheld imaging devices, and medical wearables. The high resolution and reliable performance of these displays ensure precise readings and patient data, crucial in healthcare settings.
2. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
Small Lcd Display Parameters:
Name: |
Small LCD Display |
Keywords: |
2.4 Inch Lcd Display |
---|---|---|---|
Size: |
2.4 Inch |
Interface: |
8/16-bit MCU |
Viewing Angle: |
6 O'clock |
Brightness: |
300 Cd/m2 |
Driver Ic: |
ILI9341V |
Display Mode: |
Normally Black |
Interface Type: |
MCU |
Operating Temperature: |
-20----70 °C |
Display Mode: |
Transmissive A-TFT |
Display Format: |
Graphic 240RGB*320 Dot-matrix |
Input Data: |
8bits /16bits Parallel Interface |
Viewing Direction: |
12 O’clock |
Drive: |
ST7789V |
Dimensional Outline: |
42.72(W)*60.26(H)*2.20+/-0.1 (T) (FPC Not Include) |
LCD Active Area: |
36.72(W)*48.96(H) |
Pixel Size: |
0.180(W)*0.180(H) |
