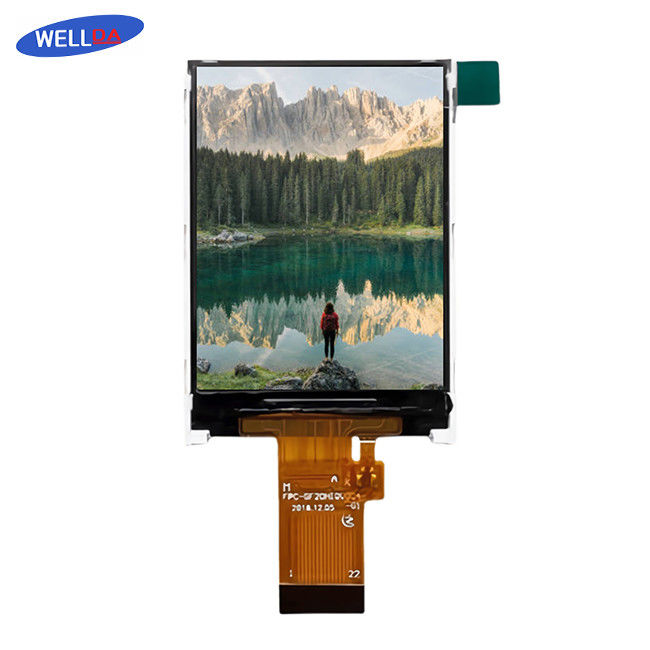

RGB Stripe Small LCD Display 2 Inch For Handheld Instrumentation

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: WellDa(OEM)
Certification: ROHS、ISO9001、CE Model Number: H240320-LSA20010A

Detail Information

Name: Small LCD Display Keywords: 2.0 Inch TFT Lcd Module
Interface: 8bit Parallel Data With MPU(8080-series MPU) Brightness: 200cd/m2
Display Mode: Normally Black Outline Dimension: 34.0(H)X48.38(V)X1.0(D)
Active Screen Size: 2.0" Diagonal Resolution: 240RGBx320
Pixel Driving Element: A-Si TFT Pixel Size: 42.5X127.5
Pixel Arrangement: RGB-stripe View Direction: 6 O'clock
Driver IC: HX8347D Cell Gap: 3.85+-0.3
Peration Temperature: -20~+70 Storage Temperature: -30~+80
High Light:

RGB Stripe Small LCD Display

,

Small LCD Display Handheld Instrumentation

,

LCD Display 2 Inch Handheld Instrumentation

Product Description

Compact Design High Performance With Small LCD Display 2.0 Inch TFT LCD Module



Small Lcd Display Description:



The Small LCD Display is a compact yet high-performing 2.0 Inch TFT LCD Module. With an 8-bit Parallel Data Interface and 8080-series MPU, it ensures efficient data transmission for an uninterrupted viewing experience. Its brightness stands at 200cd/m2, providing clear visuals even in bright conditions.

This display comes in a compact outline dimension of 34.0(H)X48.38(V)X1.0(D) and a 2.0" Diagonal active screen size. Despite its compactness, it offers a remarkable resolution of 240RGBx320, driven by the A-Si TFT pixel driving element. With a pixel size of 42.5X127.5 arranged in an RGB-stripe configuration and view direction at 6 O'clock, it ensures vivid and wide-angle viewing.

With the HX8347D driver IC, this Small LCD Display guarantees consistent high-quality visuals. It features a precise cell gap of 3.85+-0.3 and can operate between temperatures of -20 to +70 degrees and be stored from -30 to +80 degrees, showcasing its durability. The Normally Black display mode enhances its visual output, making it suitable for a wide range of applications.



Small Lcd Display Applications:



1. Portable Devices: These displays are a staple in portable electronics like smartphones, digital cameras, handheld gaming consoles, and GPS devices. Their compact size, high brightness, and resolution offer a superior user experience, enhancing the portability and functionality of these devices.

2. Industrial Applications: In industrial settings, the Small LCD Display is used in control panels, handheld instrumentation, testing equipment, and many others due to its durability and ability to operate in harsh conditions. Their ability to withstand extreme temperatures and deliver clear images makes them ideal for such environments.



Small Lcd Display Parameters:



Name:

Small LCD Display

Keywords:

2.0 Inch TFT Lcd Module

Interface:

8bit Parallel Data With MPU(8080-series MPU)

Brightness:

200cd/m2

Display Mode:

Normally Black

Outline Dimension:

34.0(H)X48.38(V)X1.0(D)

Active Screen Size:

2.0" Diagonal

Resolution:

240RGBx320

Pixel Driving Element:

A-Si TFT

Pixel Size:

42.5X127.5

Pixel Arrangement:

RGB-stripe

View Direction:

6 O'clock

Driver IC:

HX8347D

Cell Gap:

3.85+-0.3

Operation Temperature:

-20~+70

Storage Temperature:

-30~+80
