1.77" QQVGA Compact LCD Display With 2 White LED Backlighting
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H240320-LSA20010A |
|
Detail Information |
|||
| Name: | Small LCD Display | Keywords: | 2.0 Inch TFT Lcd Module |
|---|---|---|---|
| Interface: | 8bit Parallel Data With MPU(8080-series MPU) | Brightness: | 200cd/m2 |
| Display Mode: | Normally Black | Outline Dimension: | 34.0(H)X48.38(V)X1.0(D) |
| Active Screen Size: | 2.0" Diagonal | Resolution: | 240RGBx320 |
| Pixel Driving Element: | A-Si TFT | Pixel Size: | 42.5X127.5 |
| Pixel Arrangement: | RGB-stripe | View Direction: | 6 O'clock |
| Driver IC: | HX8347D | Cell Gap: | 3.85+-0.3 |
| Peration Temperature: | -20～+70 | Storage Temperature: | -30～+80 |
| High Light: | 2.0 Inch LCD Panel Small,LCD Monitor Small Size 240RGBx320,LCD Panel Small 240RGBx320 |
||
Product Description
Exceptional Brightness Performance Of Small LCD Display

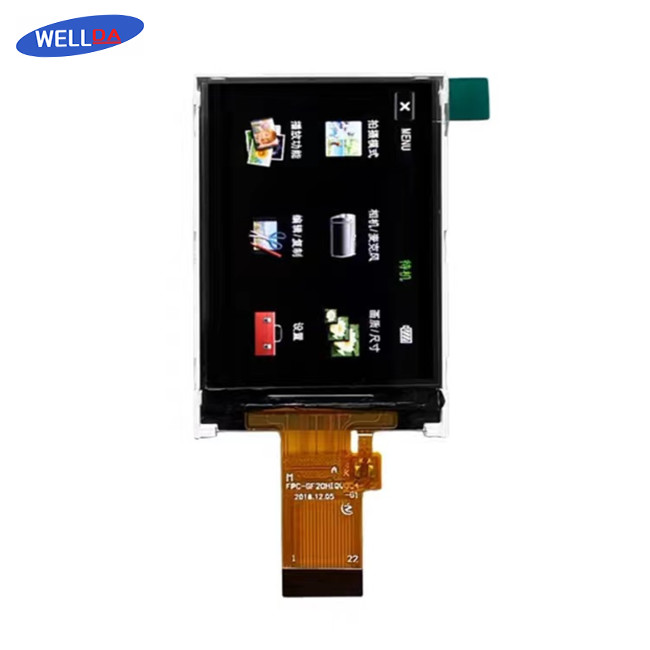

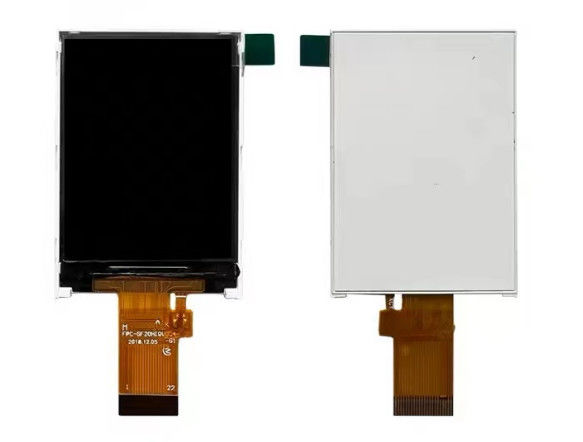

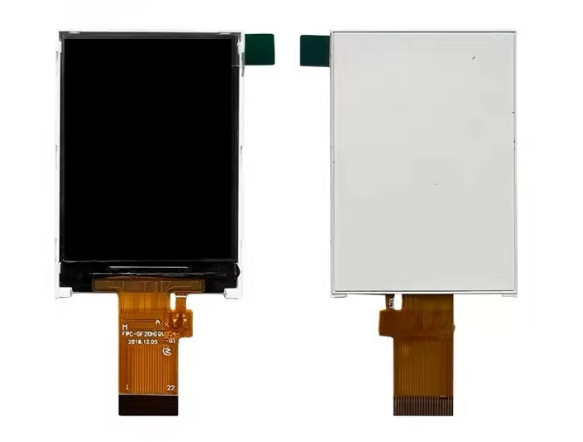

Small Lcd Display Description:
This 2.0 Inch TFT LCD Module, referred to as the Small LCD Display, is an LCD display boasting a brightness of 200cd/m2. It uses the latest display technology to provide a vibrant, clear image. The increased brightness greatly enhances visibility even in brightly lit environments, making it ideal for a wide range of applications from handheld devices to industrial equipment.
Small Lcd Display Applications:
1. Portable Devices: These displays are a staple in portable electronics like smartphones, digital cameras, handheld gaming consoles, and GPS devices. Their compact size, high brightness, and resolution offer a superior user experience, enhancing the portability and functionality of these devices.
2. Industrial Applications: In industrial settings, the Small LCD Display is used in control panels, handheld instrumentation, testing equipment, and many others due to its durability and ability to operate in harsh conditions. Their ability to withstand extreme temperatures and deliver clear images makes them ideal for such environments.
Small Lcd DisplayParameters:
|
Name: |
Small LCD Display |
Keywords: |
2.0 Inch TFT Lcd Module |
|---|---|---|---|
|
Interface: |
8bit Parallel Data With MPU(8080-series MPU) |
Brightness: |
200cd/m2 |
|
Display Mode: |
Normally Black |
Outline Dimension: |
34.0(H)X48.38(V)X1.0(D) |
|
Active Screen Size: |
2.0" Diagonal |
Resolution: |
240RGBx320 |
|
Pixel Driving Element: |
A-Si TFT |
Pixel Size: |
42.5X127.5 |
|
Pixel Arrangement: |
RGB-stripe |
View Direction: |
6 O'clock |
|
Driver IC: |
HX8347D |
Cell Gap: |
3.85+-0.3 |
|
Operation Temperature: |
-20～+70 |
Storage Temperature: |
-30～+80 |
