320*240 2.8" TFT LCD Display Advanced Visual Experience With 2.8 Inch LCD Display

Small Lcd Display Description:

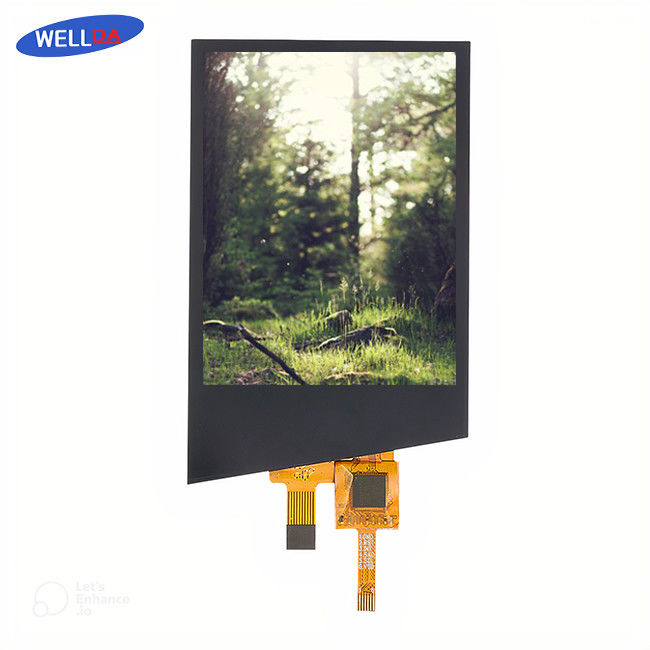

Experience the fusion of advanced technology and premium visual output with the 2.8 Inch LCD Display. It boasts a high resolution of 240(horizontal)*320(vertical) pixels, bringing your visuals to life with sharp details. The display utilizes a SPI 4 Line interface and soldering connection type, ensuring secure and efficient data transfer.

The ability to produce 65K colors combined with A-Si technology type, makes your visuals pop with vibrant colors. The pixel configuration is R.G.B.Stripe with a pixel pitch of 0.153x 0.153mm, creating detailed and high-contrast images.

Operating under the Normally White display mode and powered by the ST7789V driver IC, it guarantees reliable and superior performance. With an ideal viewing direction of 6 O'clock and a gray scale inversion direction at 12 O'clock, it offers an exceptional contrast. The LCM measures a compact 5069.22.3mm, housing an active area of 43.2*57.6mm. Despite not being equipped with TSP, this lightweight 10g display enhances illumination with 4 LEDs. Choose the 2.8 Inch LCD Display for a perfect blend of technology and quality visual performance.

Small Lcd Display Applications:

1. Portable Devices: These displays are a staple in portable electronics like smartphones, digital cameras, handheld gaming consoles, and GPS devices. Their compact size, high brightness, and resolution offer a superior user experience, enhancing the portability and functionality of these devices.

2. Healthcare Equipment: Small LCD Displays are also commonly found in medical devices like portable patient monitors, handheld imaging devices, and medical wearables. The high resolution and reliable performance of these displays ensure precise readings and patient data, crucial in healthcare settings.

Small Lcd Display Parameters:
