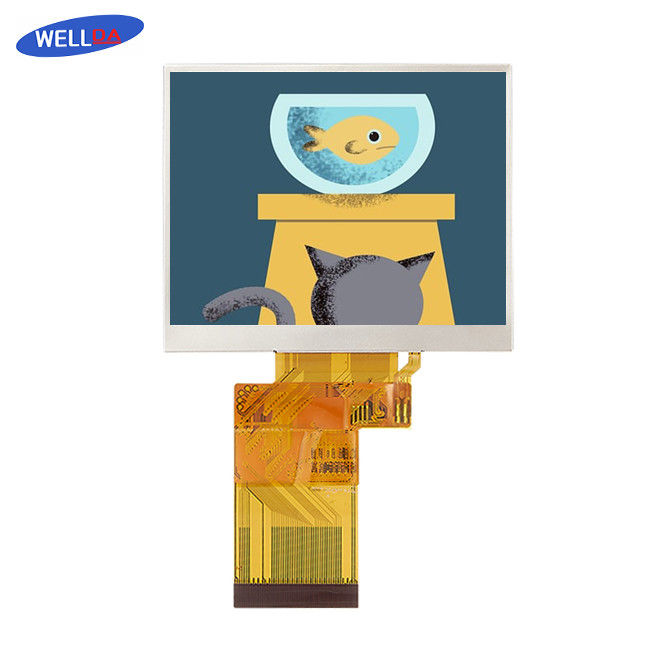

3.5inch HD LCD Display Compact High Resolution And Energy Efficient
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H035TQ54E3501 |
|
Detail Information |
|||
| Name: | 3.5inch HD LCD Display | Size: | 3.5inch |
|---|---|---|---|
| Resolution: | 320(horizontal)*240(Vertical) | Glass Maker: | Tianma |
| Lnterface: | 24bit-RGB | Connect Type: | Connector |
| Display Colors: | 16.7M | Technology Type: | A-Si |
| Pixel Pitch (mm): | 0.219(RGB)(W) X 0.219 (H) | Pixel Configuration: | R.G.B.Stripe |
| Display Mode: | Normally White | Driver LC: | NV3035 |
| Luminance: | 350 Nits | Viewing Direction: | 12 O'clock |
| Gray Scale Inversion Direction: | 6 O'clock | LCM (W X Hx D) (mm): | 76.90*64.0*3.1 |
| Active Area(mm): | 70.08 X 52.56 | With Without TSP: | Without |
| Weight (g): | 28g | LED Numbers: | 6LEDs (6s) |
| High Light: | 3.5inch High Definition LCD Monitor,High Definition LCD Monitor 16.7M,HD LCD screen Energy Efficient |
||
Product Description
3.5inch HD LCD Display High-Precision 16.7M Colors Energy Efficient Screen
HD LCD Display Description:
Revolutionize your viewing experience with the 3.5inch HD LCD Display, providing unmatched clarity and precision with 320x240 resolution. Our Tianma-made glass guarantees optimal durability and performance. The 24-bit RGB interface ensures vibrant, true-to-life images with 16.7 million colors to choose from. Say goodbye to bulky screens – our sleek A-Si technology makes for a slim, lightweight design at only 28g and dimensions of 76.9x64.0x3.1mm. Enhance your viewing even further with 350 nits of brightness and a viewing direction of 12 O'clock, allowing for clear visuals even in bright environments. The NV3035 driver LC is perfect for streamlined operation, keeping your screen up and running for years to come. The display comes without a touch screen panel, ensuring a more affordable, streamlined option for those who don't require touch functionality. Designed with energy efficiency in mind, the 3.5-inch HD LCD Display utilizes RGB stripe pixel configuration and 6 LED lights to reduce power draw. Upgrade your projects with our robust, high-quality screen today!
HD LCD Display Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
HD LCD Display Parameters:
| Name: | 3.5inch HD LCD Display | Size: | 3.5inch |
|---|---|---|---|
| Resolution: | 320(horizontal)*240(Vertical) | Glass Maker: | Tianma |
| Interface: | 24bit-RGB | Connect Type: | Connector |
| Display Colors: | 16.7M | Technology Type: | A-Si |
| Pixel Pitch (mm): | 0.219(RGB)(W) X 0.219 (H) | Pixel Configuration: | R.G.B.Stripe |
| Display Mode: | Normally White | Driver LC: | NV3035 |
| Luminance: | 350 Nits | Viewing Direction: | 12 O'clock |
| Gray Scale Inversion Direction: | 6 O'clock | LCM (W X Hx D) (mm): | 76.90*64.0*3.1 |
| Active Area(mm): | 70.08 X 52.56 | With or Without TSP: | Without |
| Weight (g): | 28g | LED Numbers: | 6LEDs (6s) |
