3.5inch HD LCD Display Compact High Resolution And Energy Efficient
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H035TQ54E3501 |
|
Detail Information |
|||
| Name: | 3.5inch HD LCD Display | Size: | 3.5inch |
|---|---|---|---|
| Resolution: | 320(horizontal)*240(Vertical) | Glass Maker: | Tianma |
| Lnterface: | 24bit-RGB | Connect Type: | Connector |
| Display Colors: | 16.7M | Technology Type: | A-Si |
| Pixel Pitch (mm): | 0.219(RGB)(W) X 0.219 (H) | Pixel Configuration: | R.G.B.Stripe |
| Display Mode: | Normally White | Driver LC: | NV3035 |
| Luminance: | 350 Nits | Viewing Direction: | 12 O'clock |
| Gray Scale Inversion Direction: | 6 O'clock | LCM (W X Hx D) (mm): | 76.90*64.0*3.1 |
| Active Area(mm): | 70.08 X 52.56 | With Without TSP: | Without |
| Weight (g): | 28g | LED Numbers: | 6LEDs (6s) |
| High Light: | 320x240 HD LCD Display,HD LCD Display RGB Interface,3.5 Inch Tft Lcd 350 Nits |
||
Product Description

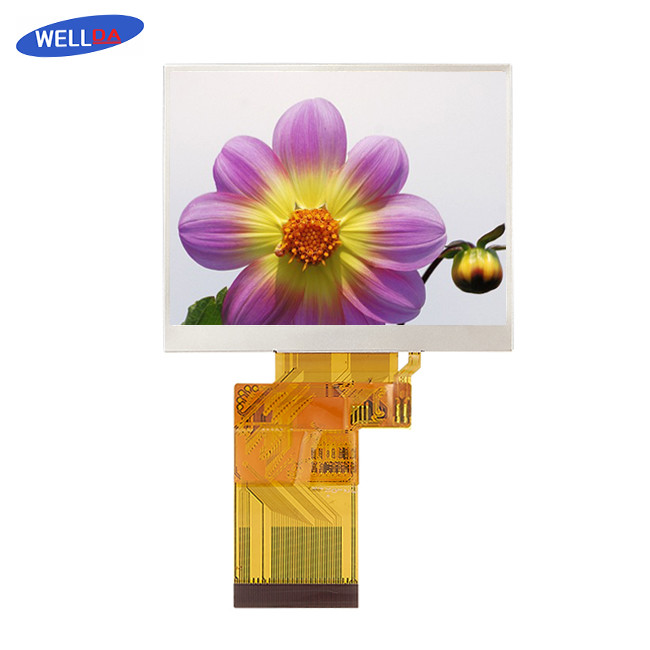

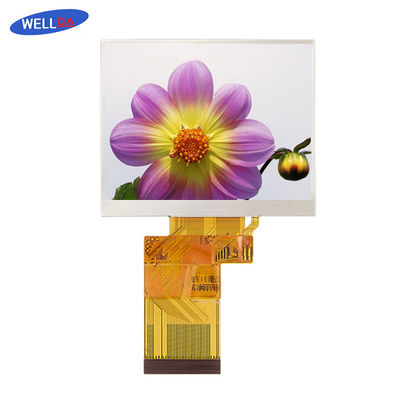

3.5 Inch HD LCD Display 320x240 Resolution 350 Nits Brightness RGB Interface
HD LCD Display Description:
Enhance your viewing experience with our premium 3.5-inch HD LCD display, boasting a crystal-clear 320x240 resolution, a vibrant 16.7 million display colors, and an impressive brightness of 350 nits. Our high-quality Tianma glass screen offers superior durability and reliability, while the 24-bit RGB interface guarantees seamless connectivity. Enjoy crisp images with a pixel pitch of 0.219mm, and a lightweight, compact design that fits seamlessly into any project. Don't settle for less - choose our market-leading, SEO-optimized LCD display for the ultimate viewing experience.
HD LCD Display Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
HD LCD Display Parameters:
| Name: | 3.5inch HD LCD Display | Size: | 3.5inch |
|---|---|---|---|
| Resolution: | 320(horizontal)*240(Vertical) | Glass Maker: | Tianma |
| Interface: | 24bit-RGB | Connect Type: | Connector |
| Display Colors: | 16.7M | Technology Type: | A-Si |
| Pixel Pitch (mm): | 0.219(RGB)(W) X 0.219 (H) | Pixel Configuration: | R.G.B.Stripe |
| Display Mode: | Normally White | Driver LC: | NV3035 |
| Luminance: | 350 Nits | Viewing Direction: | 12 O'clock |
| Gray Scale Inversion Direction: | 6 O'clock | LCM (W X Hx D) (mm): | 76.90*64.0*3.1 |
| Active Area(mm): | 70.08 X 52.56 | With or Without TSP: | Without |
| Weight (g): | 28g | LED Numbers: | 6LEDs (6s) |
