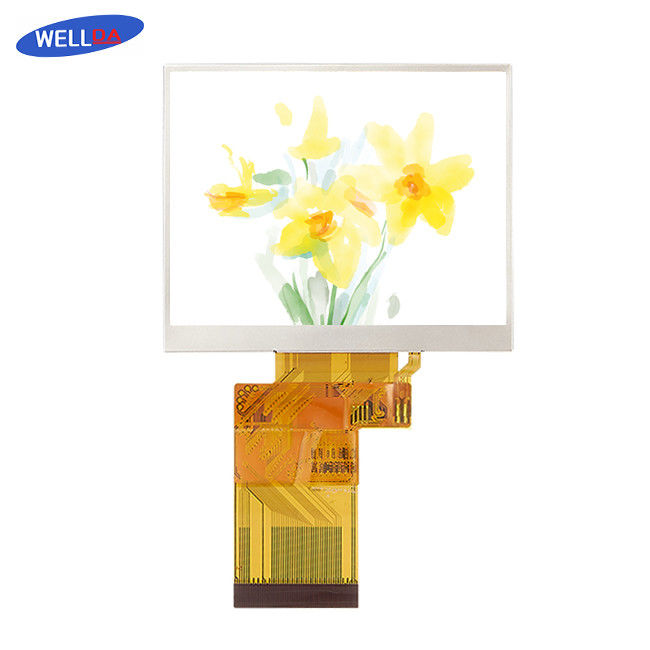

3.5inch HD LCD Display Compact High Resolution And Energy Efficient
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H035TQ54E3501 |
|
Detail Information |
|||
| Name: | 3.5inch HD LCD Display | Size: | 3.5inch |
|---|---|---|---|
| Resolution: | 320(horizontal)*240(Vertical) | Glass Maker: | Tianma |
| Lnterface: | 24bit-RGB | Connect Type: | Connector |
| Display Colors: | 16.7M | Technology Type: | A-Si |
| Pixel Pitch (mm): | 0.219(RGB)(W) X 0.219 (H) | Pixel Configuration: | R.G.B.Stripe |
| Display Mode: | Normally White | Driver LC: | NV3035 |
| Luminance: | 350 Nits | Viewing Direction: | 12 O'clock |
| Gray Scale Inversion Direction: | 6 O'clock | LCM (W X Hx D) (mm): | 76.90*64.0*3.1 |
| Active Area(mm): | 70.08 X 52.56 | With Without TSP: | Without |
| Weight (g): | 28g | LED Numbers: | 6LEDs (6s) |
| High Light: | 3.5 Inch HD LCD Screen,HD LCD Screen RGB,lcd tft 3.5 6 LEDs |
||
Product Description
3.5inch HD LCD Display High Quality Lightweight Vibrant Screen
HD LCD Display Description:
Discover the ultimate visual experience with our 3.5inch HD LCD Display, boasting a high resolution of 320x240 for crystal clear images. This lightweight, high-performance screen is crafted using Tianma Glass, ensuring superior quality and durability. The 24-bit RGB interface enhances your display with a stunning range of 16.7 million colors for true-to-life visuals. Our sleek A-Si Technology makes for a slim design - measuring 76.9x64.0x3.1mm and weighing just 28g. Experience vibrant images even in bright environments with 350 nits of luminance and optimal 12 O'clock viewing angles. Fueled by the reliable NV3035 driver LC, this screen is built for longevity. With an RGB stripe pixel configuration and 6 power-saving LEDs, our 3.5-inch HD LCD Display is energy efficient without compromising performance. The screen is designed without a touch screen panel, offering an affordable, streamlined option for projects that do not require touch functionality. Bring your next project to life with the captivating display quality of our 3.5-inch HD LCD Display.
HD LCD Display Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
HD LCD Display Parameters:
| Name: | 3.5inch HD LCD Display | Size: | 3.5inch |
|---|---|---|---|
| Resolution: | 320(horizontal)*240(Vertical) | Glass Maker: | Tianma |
| Interface: | 24bit-RGB | Connect Type: | Connector |
| Display Colors: | 16.7M | Technology Type: | A-Si |
| Pixel Pitch (mm): | 0.219(RGB)(W) X 0.219 (H) | Pixel Configuration: | R.G.B.Stripe |
| Display Mode: | Normally White | Driver LC: | NV3035 |
| Luminance: | 350 Nits | Viewing Direction: | 12 O'clock |
| Gray Scale Inversion Direction: | 6 O'clock | LCM (W X Hx D) (mm): | 76.90*64.0*3.1 |
| Active Area(mm): | 70.08 X 52.56 | With or Without TSP: | Without |
| Weight (g): | 28g | LED Numbers: | 6LEDs (6s) |
