3.5inch HD LCD Display Compact High Resolution And Energy Efficient
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H035TQ54E3501 |
|
Detail Information |
|||
| Name: | 3.5inch HD LCD Display | Size: | 3.5inch |
|---|---|---|---|
| Resolution: | 320(horizontal)*240(Vertical) | Glass Maker: | Tianma |
| Lnterface: | 24bit-RGB | Connect Type: | Connector |
| Display Colors: | 16.7M | Technology Type: | A-Si |
| Pixel Pitch (mm): | 0.219(RGB)(W) X 0.219 (H) | Pixel Configuration: | R.G.B.Stripe |
| Display Mode: | Normally White | Driver LC: | NV3035 |
| Luminance: | 350 Nits | Viewing Direction: | 12 O'clock |
| Gray Scale Inversion Direction: | 6 O'clock | LCM (W X Hx D) (mm): | 76.90*64.0*3.1 |
| Active Area(mm): | 70.08 X 52.56 | With Without TSP: | Without |
| Weight (g): | 28g | LED Numbers: | 6LEDs (6s) |
| High Light: | HD LCD Display 70.08 x 52.56,Vibrant Colors HD LCD Display,lcd full hd 70.08 X 52.56 |
||
Product Description

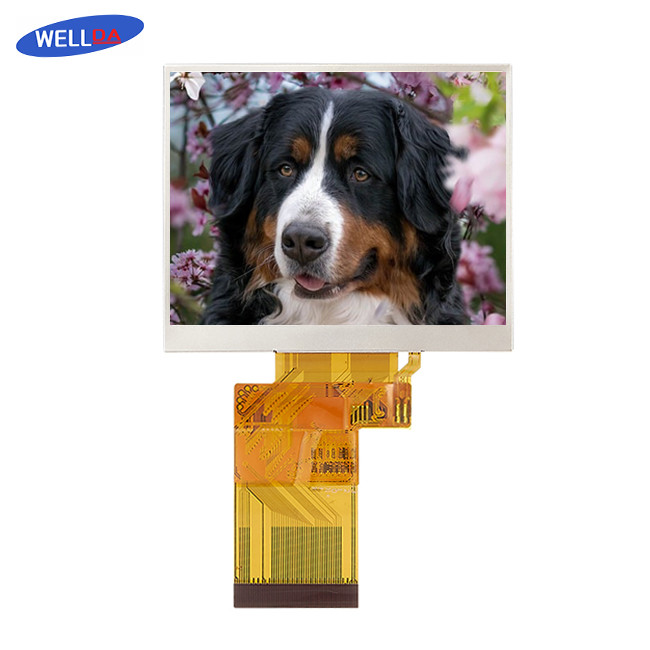

3.5inch HD LCD Display Compact Vibrant Colors High Resolution Screen
HD LCD Display Description:
Transform your visual experience with the 3.5inch HD LCD Display, offering exceptional detail and precision with a 320x240 resolution. Manufactured by Tianma, our glass material guarantees top-notch performance and durability. The 24-bit RGB interface presents captivating, lifelike images with 16.7 million colors. This A-Si technology display is not just slim and lightweight, weighing only 28g, but also has dimensions of 76.9x64.0x3.1mm. With a luminance of 350 nits, a 12 O'clock viewing direction, and a gray scale inversion direction of 6 O'clock, the screen delivers clear visuals even under bright lighting conditions. The NV3035 driver LC ensures seamless operation, maintaining reliable performance over time. The 3.5inch HD LCD Display comes without a touch screen panel, offering affordability for users without the need for touch functionality. Optimized for energy efficiency, the screen includes RGB stripe pixel configuration and 6 LED lights to minimize power consumption. Experience the unmatched quality of the 3.5inch HD LCD Display to elevate your projects and visual displays!
HD LCD Display Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
HD LCD Display Parameters:
| Name: | 3.5inch HD LCD Display | Size: | 3.5inch |
|---|---|---|---|
| Resolution: | 320(horizontal)*240(Vertical) | Glass Maker: | Tianma |
| Interface: | 24bit-RGB | Connect Type: | Connector |
| Display Colors: | 16.7M | Technology Type: | A-Si |
| Pixel Pitch (mm): | 0.219(RGB)(W) X 0.219 (H) | Pixel Configuration: | R.G.B.Stripe |
| Display Mode: | Normally White | Driver LC: | NV3035 |
| Luminance: | 350 Nits | Viewing Direction: | 12 O'clock |
| Gray Scale Inversion Direction: | 6 O'clock | LCM (W X Hx D) (mm): | 76.90*64.0*3.1 |
| Active Area(mm): | 70.08 X 52.56 | With or Without TSP: | Without |
| Weight (g): | 28g | LED Numbers: | 6LEDs (6s) |
