3.5inch HD LCD Display Compact High Resolution And Energy Efficient
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H043HWQ40I7079 |
|
Detail Information |
|||
| Name: | 4.3 Inch | Size: | 3.5inch |
|---|---|---|---|
| Resolution: | 480(RGB)×272 | Interface: | 24bit-RGB |
| Connect Type: | Connector | Display Colors: | 16.7M |
| Technology Type: | A-Si | Display Spec.: | 0.198 X 0.198 |
| Display Mode: | Normally Black | Driver LC: | Sc7283 |
| Surface Treatment: | HC | Viewing Direction: | ALL |
| Gray Scale Inversion Direction: | Free | LCM (W X Hx D) (mm): | 105.40*67.15*2.90 |
| Active Area(mm): | 95.04 X 53.86 | With Without TSP: | Without TSP |
| Weight (g): | TBD | LED Numbers: | 12LEDs |
| High Light: | 24bit RGB 4.3 Inch Tft Lcd Display,4.3 Inch Tft Lcd Display 480x272,4.3 Inch Lcd Display 480x272 |
||
Product Description

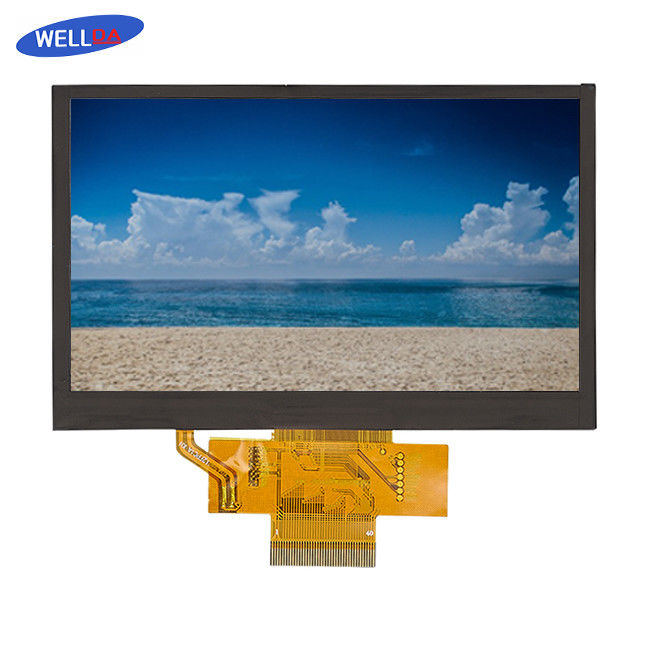

4.3 Inch HD LCD Display 480x272 Resolution 24bit RGB Interface
HD LCD Display Description:
Introducing our premium 4.3 Inch HD LCD Display, crafted to deliver superior visual experience. With its 480(RGB)×272 resolution, every image comes alive with vibrant colors and sharp details, thanks to its 16.7M Display Colors.
This display features a 24bit-RGB interface and employs A-Si technology, assuring optimal performance and longer lifespan. The display mode is 'Normally Black', ensuring consistency in color rendition, while its free Gray Scale Inversion Direction enhances the contrast ratio for better visual clarity. It has a compact size of 105.4067.152.90mm (LCM) and active area of 95.04 X 53.86mm, making it a perfect choice for compact and portable devices.
The 4.3 Inch HD LCD Display is designed with a connector type connect, ensuring hassle-free integration into your device. It's powered by the SC7283 Driver LC and offers an all-around viewing direction, ensuring a comfortable viewing experience from any angle. The surface treatment is HC, providing durability and resilience against scratches and external impacts.
Please note, this LCD Display comes without a TSP and the LED Numbers are 12. The weight of the LCD Display is to be determined (TBD). Enhance your device with our 4.3 Inch HD LCD Display and experience visual brilliance like never before!
HD LCD Display Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
HD LCD Display Parameters:
|
Name: |
4.3 Inch HD LCD Display |
Size: |
3.5inch |
|---|---|---|---|
|
Resolution: |
480(RGB)×272 |
Interface: |
24bit-RGB |
|
Connect Type: |
Connector |
Display Colors: |
16.7M |
|
Technology Type: |
A-Si |
Display Spec.: |
0.198 X 0.198 |
|
Display Mode: |
Normally Black |
Driver LC: |
Sc7283 |
|
Surface Treatment: |
HC |
Viewing Direction: |
ALL |
|
Gray Scale Inversion Direction: |
Free |
LCM (W X Hx D) (mm): |
105.40*67.15*2.90 |
|
Active Area(mm): |
95.04 X 53.86 |
With or Without TSP: |
Without TSP |
|
Weight (g): |
TBD |
LED Numbers: |
12LEDs |
