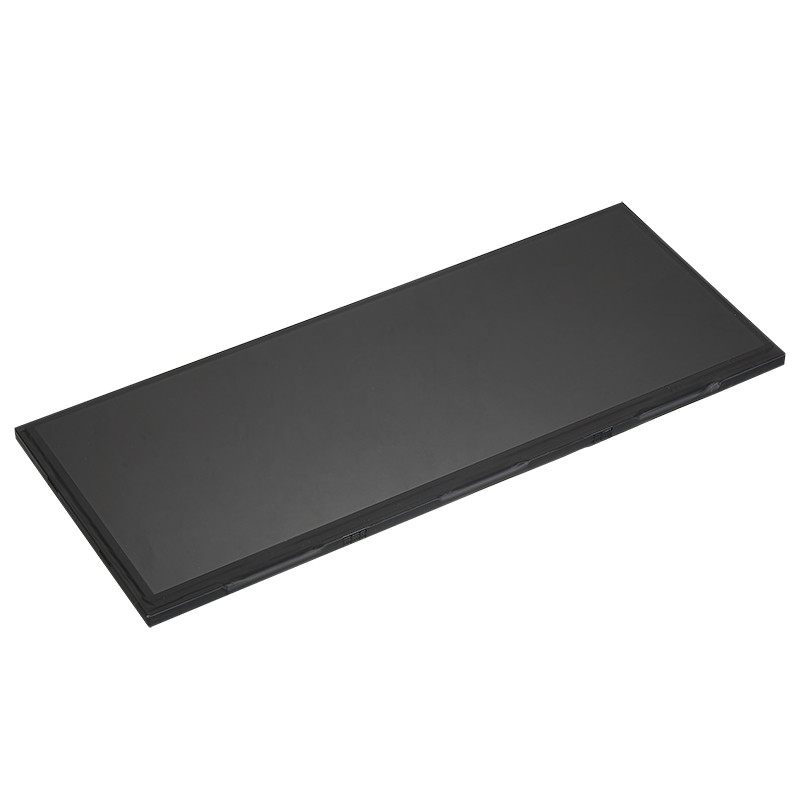

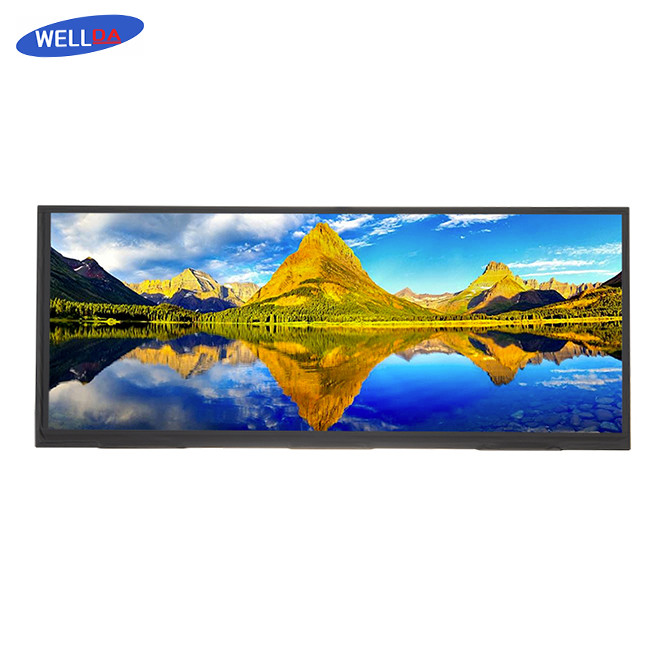

12.3 Inch Full View LCD Display Module 12.3 LCD Screen Vibrant Colors

Product Description

Immerse In Vibrant Colors With 12.3 Inch Full View LCD Display Module

LCD Display Module Description:

Experience lifelike visuals with our 12.3 Inch LCD Display Module. It comes with a substantial display area of 292.032(H) X 109.512(V) mm and a high resolution of 1920(H) X 3(RGB) X 720(V) that offers stunning detail and sharpness. The module boasts a pixel pitch of 0.1521(H) X 0.1521(V) mm and an RGB Vertical Stripe color pixel arrangement that ensures accurate color representation. It utilizes a 2 Port LVDS interface and has a compact outline dimension of 307.9 X 130.27 X 7.0(D) mm (without cover & connector). The display operates in Normally Black mode, showcasing up to 16.7M colors (Real 8 Bit) for a vivid visual experience. It offers a full viewing direction and has a fast response time of 25ms (Typ.)/35ms(Max.). The display provides 70% NTSC, consuming minimal power (LCD: 1.98W(TYP.) BLU: 10.04W(TYP)/11.02W(MAX)) and is equipped with an LED backlight unit. With an Anti-Glare surface treatment and a brightness level of 800nits (TYP.)/600nits (MIN.), this LCD Display Module assures comfortable viewing and is ideal for a wide range of applications. The product is certified by ROHS, ISO9001, and CE, ensuring quality and safety.

LCD Display Module Applications:

1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.

2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.

3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.

LCD Display Module Parameters:
