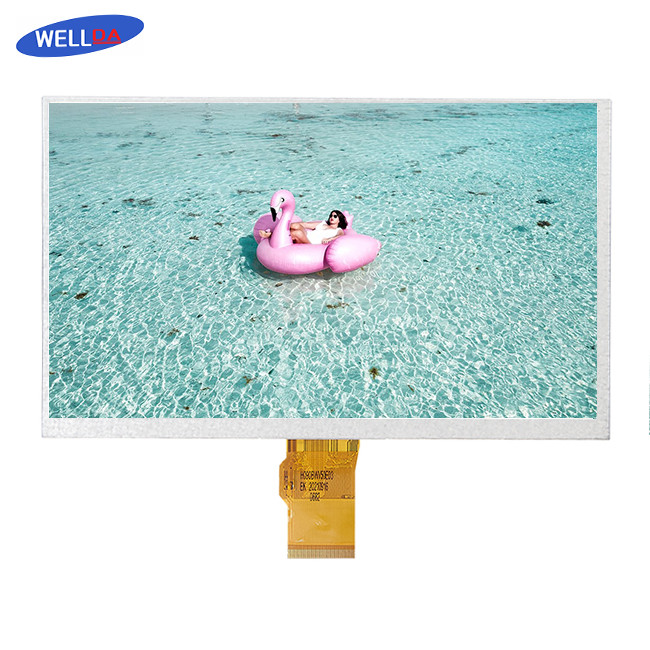

9 Inch LCD Display Module 800x480 Pixels Antiglare Coating For Superior Clarity
Contact Person : Mr. Zhu
Phone Number : +8613760373914
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
---|---|---|---|
Certification: | ROHS、ISO9001、CE | Model Number: | H090BWV50E5004 |
Detail Information |
|||
Name: | 9 Inch LCD Display Module | Resolution: | 800× RGB × 480 |
---|---|---|---|
Interface: | RGB-24bit | Connect Type: | Connector |
Color Depth: | 16.7M | Technology Type: | A-Si |
Pixel Pitch (mm): | 0.0825(H) X 0.2327(V) | Pixel Configuration: | R.G.B. Vertical Stripe |
Display Mode: | Normally White | Driver IC: | TBD |
Surface Treatment: | 3H | Viewing Direction: | 12 O’clock |
View Direction(Gray Inversion): | 6 O’clock | LCM (W X H X D) (mm): | 210.6*126.5*3.5 |
Active Area(mm): | 198 X111.69 | With /Without TSP: | With TSP |
Weight (g): | TBD | LED Numbers: | 39 LEDs |
High Light: | 9 Inch Touch Screen Module,Interactive Touch Screen Module |
Product Description
Interactive 9 Inch LCD Display Module With Advanced Features
LCD Display Module Description:
Experience unparalleled visual quality with our 9 Inch LCD Display Module. It offers a high-resolution 800 x 480-pixel display, delivering sharp images and vibrant colors for an optimal viewing experience. The module comes equipped with an RGB-24bit interface that ensures seamless data transmission, thereby enhancing performance. It also boasts a color depth of 16.7M, which guarantees accurate color representation and clarity. The module is designed with an A-Si technology type, known for its high reliability and performance. The module features a convenient size, with an active area of 198 x 111.69mm, making it suitable for a range of applications. To make interaction more intuitive, this model comes with a touch screen panel (TSP). We recommend following the safety and handling instructions provided for maintaining its functionality and prolonging its life.
LCD Display Module Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
LCD Display Module Parameters:
Name: | 9 Inch LCD Display Module | Resolution: | 800× RGB × 480 |
---|---|---|---|
Interface: | RGB-24bit | Connect Type: | Connector |
Color Depth: | 16.7M | Technology Type: | A-Si |
Pixel Pitch (mm): | 0.0825(H) X 0.2327(V) | Pixel Configuration: | R.G.B. Vertical Stripe |
Display Mode: | Normally White | Driver IC: | TBD |
Surface Treatment: | 3H | Viewing Direction: | 12 O’clock |
View Direction(Gray Inversion): | 6 O’clock | LCM (W X H X D) (mm): | 210.6*126.5*3.5 |
Active Area(mm): | 198 X111.69 | With /Without TSP: | With TSP |
Weight (g): | TBD | LED Numbers: | 39 LEDs |
