9 Inch LCD Display Module 800x480 Pixels Antiglare Coating For Superior Clarity
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H101IWS50E3501 |
|
Detail Information |
|||
| Name: | 10.1 Inch LCD Display Module | LCD Type: | 10.1Inch TFT |
|---|---|---|---|
| Dot Arrangement: | 1024×3(RGB)×600 | Color Filter Array: | RGB Vertical Stripe |
| Display Mode: | Normally White | Viewing Direction: | 6 O'Clock |
| Module Size: | 235(W)×143(H)×5.2(T) | Active Area: | 222.72(W)×125.28(H) |
| Dot Pitch: | 0.2175(W)×0.2088(H) | Lnterface: | RGB Interface |
| Operating Temperature: | -20~+70 | Storage Temperature: | -30~+80 |
| High Light: | Normally White LCD Display Module,LCD Display Module 6 O'Clock,10.1 Inch LCD Panel RGB |
||
Product Description

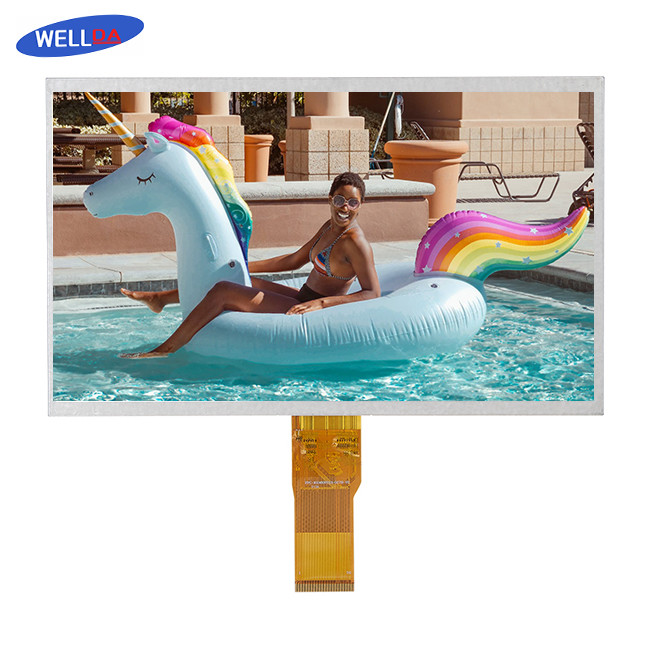

Exceptional Clarity With 10.1 Inch TFT LCD Display Module
LCD Display Module Description:
Discover a new standard of viewing with our 10.1 Inch TFT LCD Display Module. Sporting a resolution of 1024 x 3(RGB) x 600 dots, this module delivers vibrant and clear images that make for an immersive viewing experience. The RGB Vertical Stripe color filter array ensures vivid and realistic colors, while the Normally White display mode contributes to the exceptional contrast and brightness of the display. Designed for flexibility, the viewing direction is 6 O'Clock, providing a comfortable viewing angle for various applications. The module size is 235(W) x 143(H) x 5.2(T) mm with an active area of 222.72(W) x 125.28(H) mm, ensuring a generous display area. The dot pitch is 0.2175(W) x 0.2088(H) mm, allowing for sharp and detailed visuals. This display module features an RGB interface, and it is built to withstand operating temperatures ranging from -20 to +70 degrees and storage temperatures from -30 to +80 degrees, showcasing its durability and adaptability.
LCD Display Module Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
LCD Display Module Parameters:
|
Name: |
Inch LCD Display Module |
LCD Type: |
10.1Inch TFT |
|---|---|---|---|
|
Dot Arrangement: |
1024×3(RGB)×600 |
Color Filter Array: |
RGB Vertical Stripe |
|
Display Mode: |
Normally White |
Viewing Direction: |
6 O'Clock |
|
Module Size: |
235(W)×143(H)×5.2(T) |
Active Area: |
222.72(W)×125.28(H) |
|
Dot Pitch: |
0.2175(W)×0.2088(H) |
Lnterface: |
RGB Interface |
|
Operating Temperature: |
-20~+70 |
Storage Temperature: |
-30~+80 |
