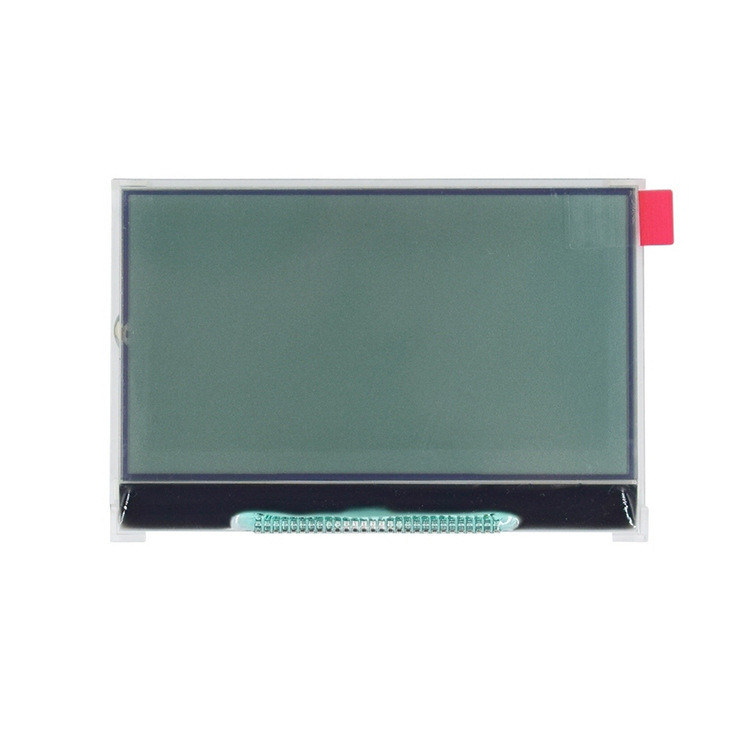

OEM Design 350 Brightness STN LCD Display 128X64 28pin Parallel Port Connection
|
OEM Design 350 Brightness STN LCD Display 128X64 28pin Parallel Port Connection
| Place of Origin | China |
| Brand Name | HuaXianJing |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | HXJ12864022 |
Product Details
Screen Size:
3.2 Inch STN LCD Display
Name:
LCD Display
Backlight Luminance:
350 Cd/m2
Panel Size(mm):
77.4*52.4*6.0
Viewing Area(mm):
66.52*33.24
Display Resolution:
128x64 Pexels
Interface:
Parallel Port
Driver Ic:
ST7565
Display Mode:
FSTN/Grey Film
Highlight:
STN 28 Pin LCD Display
,OEM STN LCD Display
,Parallel Port Connection STN LCD Display
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
Negotiated
Packaging Details
blister+foam box+bubble bag+inside carton+master carton
Delivery Time
5weeks~8weeks
Payment Terms
T/T
Supply Ability
100K per month
Product Description
OEM Design 350 Brightness STN LCD Display 128X64 28pin Parallel Port Connection
Product Overview
This 3.2 inch STN LCD Display presents a reliable and practical visual solution for various applications. With a resolution of 128 x 64, it offers a clear and legible display of essential information, making it ideal for presenting device status, short text messages, and numerical data. The FSTN/gray mode display provides enhanced visual quality compared to traditional STN displays, with better contrast and a more refined appearance.
Key Features
- 128 x 64 resolution for effectively conveying key information
- FSTN/gray mode display for enhanced visual quality and readability
- 350 brightness for outstanding visibility in diverse lighting
- 28-pin parallel port connection for high-speed data transfer and easy device integration
- Driver IC ST7565 for reliable operation
Application Scenarios
- Industrial Control Panels: Suitable for mounting on control boxes in manufacturing plants or power stations. The gray mode display is highly visible in industrial environments with harsh lighting.
- Medical Diagnostic Devices: Ideal for handheld devices like blood glucose meters or pulse oximeters. The display can present test results and patient information clearly in medical settings.
- Automotive Gauges: Perfect for aftermarket gauges such as tachometers or oil pressure gauges. The display remains visible in different lighting conditions while driving.
Technical Specifications
| Parameter | Value |
|---|---|
| Outline size | 77.4*52.4*6.0mm |
| Active Area | 66.52*33.24mm |
| Resolution | 128x64 |
| Storage temperature | -20°C~+70°C |
| Working temperature | -30°C~+80°C |
| Interface | Parallel port |
| Driver IC | ST7565 |
| Luminance | 350cd/m² |
| Display mode | FSTN/Grey film |
| Pin count | 28 pin |
Product Diagram
