6.2 Inch Tft Screen For Car TN LCD Module 24bit RGB interface
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H050BWV40I1K004 |
|
Detail Information |
|||
| Name: | 5.0 Inch IPS LCD Module | Keywords: | Car LCD Display |
|---|---|---|---|
| Resolution: | 800(horizontal)*480(Vertical) | Interface: | RGB-24bits |
| Connect Type: | Connector | Color Depth: | 16.7M |
| Technology Type: | A-Si | Pixel Pitch (mm): | 0.045 X0.135 |
| Pixel Configuration: | R.G.B. Vertical Stripe | Display Mode: | Normally White |
| Viewing Direction: | 12 O’clock | Gray Scale Inversion Direction: | 6 O’clock |
| LCM (W X H X D) (mm): | 120.7*75.9*3 | Active Area(mm): | 108x 64.80 |
| Weight (g): | TBD | LED Numbers: | 18 LEDs |
| High Light: | 5'' Car LCD Display,Car LCD Display 12 O Clock,5'' car LCD module |
||
Product Description

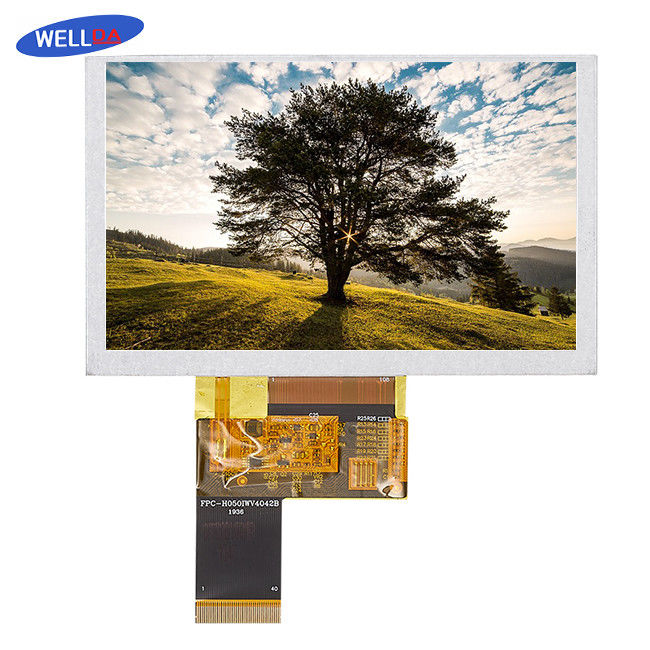

5.0" IPS LCD Experience Unsurpassed Clarity In Car Display Technology
Car LCD Display Description:
Upgrade your drive with our 5.0" IPS LCD Display, specially designed for automobiles. Operating at a resolution of 800x480, this display offers sharp and vibrant visuals thanks to its 16.7M color depth. Our LCD module, based on A-Si technology, features an RGB-24bits interface, ensuring optimum color accuracy. The viewing direction of 12 O'clock and compact dimensions of 120.775.82.9mm makes it an ideal addition to any vehicle's dashboard. From consumer electronics to cars, our 5.0" IPS Car LCD Display is a game-changer in display technology. Discover the difference today.
Car LCD Display Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
Car LCD Display Parameters:
|
Name: |
5.0 Inch IPS LCD Module |
Keywords: |
Car LCD Display |
|
Resolution: |
800(horizontal)*480(Vertical) |
Interface: |
RGB-24bits |
|
Connect Type: |
Connector |
Color Depth: |
16.7M |
|
Technology Type: |
A-Si |
Pixel Pitch (mm): |
0.045 X0.135 |
|
Pixel Configuration: |
R.G.B. Vertical Stripe |
Display Mode: |
Normally White |
|
Viewing Direction: |
12 O’clock |
Gray Scale Inversion Direction: |
6 O’clock |
|
LCM (W X H X D) (mm): |
120.7*75.9*3 |
Active Area(mm): |
108x 64.80 |
|
Weight (g): |
TBD |
LED Numbers: |
18 LEDs |
|
LCD Driver IC |
ILI5960+ILI6122 |
With /Without TSP |
Without |
