MCU Interface 3.5 Inch Tft Display

Product Details:
Place of Origin: ShenZhen, China
Brand Name: WellDa(OEM)
Certification: ROHS、ISO9001、CE
Model Number: H035SHV40I3505
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 300Kpcs/month

Detail Information

Name: 3.5 Inch TFT LCD Display Keywords: TFT LCD Display
Display Format: 320(horizontal)*480(Vertical) Lnterface: MCU Interface
Connect Type: Connector Color Depth: 262K
Technology Type: A-Si Display Spec.: 0.153x 0.153
Display Mode: Normally Black Pixel Configuration: R.G.B. Vertical Stripe
Driver LC: ILI9488 Surface Treatment: HC
Viewing Direction: ALL LCM(W X HxD)(mm): 54.94*85.5*3.7
Active Area(mm): 48.96 X 73.44 With /Without TSP: Without TSP
Weight (g): TBD LED Numbers: 6 LEDs
High Light:

MCU 3.5 Inch Tft Display

,

3.5 Inch Tft Display 262K

Product Description

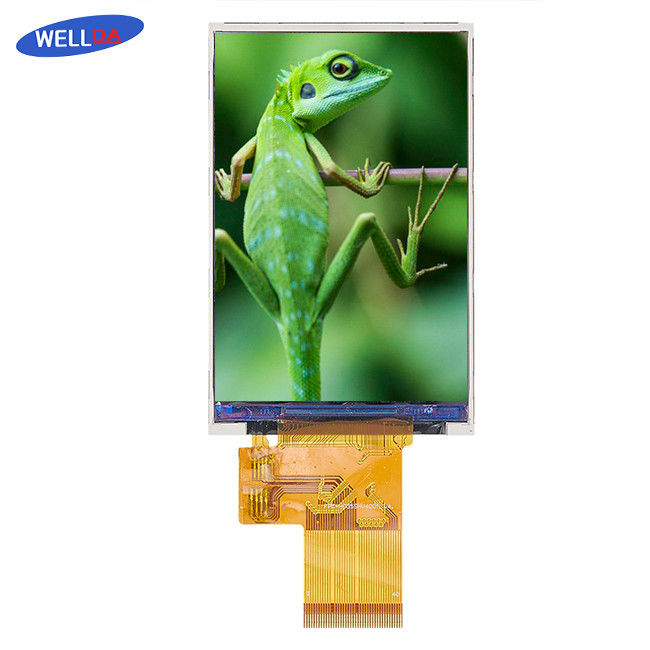

3.5 Inch TFT LCD Display High Resolution MCU Interface With ILI9488 Driver





TFT LCD Display Description:



Dive into a world of vibrant visuals with our 3.5 Inch TFT LCD Display. With a high-resolution output of 320(horizontal) x 480(Vertical), and an enriched color depth of 262K, this TFT LCD display presents a lifelike and immersive viewing experience.

Equipped with a MCU interface and a connector connect type, our TFT LCD Display ensures swift and uninterrupted data transmission, promising a smooth visual experience. Built on the A-Si technology type, our display ensures both robust performance and durability.

Despite its compact design (LCM dimensions: 54.9485.53.7mm), our 3.5 Inch TFT LCD Display provides a generous active area of 48.96 X 73.44mm. Each pixel meticulously crafted in a R.G.B. Vertical Stripe configuration, enhancing the overall image detail.

The display operates in a Normally Black mode, ensuring crisp images and deep, true blacks for an authentic visual experience. Powered by the ILI9488 Driver LC, our display promises consistent performance. It features an HC surface treatment and provides an ALL viewing direction, ensuring clear views from any angle.

This TFT LCD display houses 6 LEDs for optimal brightness and contrast, and it does not come with a TSP. The exact weight will be provided later (TBD).

Choose our 3.5 Inch TFT LCD Display for its superior visual quality, robust performance, and durability!



TFT LCD Display Applications:



1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.

2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.

3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.


TFT LCD Display Parameters:



Name:

3.5 Inch TFT LCD Display

Keywords:

TFT LCD Display

Display Format:

320(horizontal)*480(Vertical)

Interface:

MCU Interface

Connect Type:

Connector

Color Depth:

262K

Technology Type:

A-Si

Display Spec.:

0.153x 0.153

Display Mode:

Normally Black

Pixel Configuration:

R.G.B. Vertical Stripe

Driver LC:

ILI9488

Surface Treatment:

HC

Viewing Direction:

ALL

LCM(W X HxD)(mm):

54.94*85.5*3.7

Active Area(mm):

48.96 X 73.44

With /Without TSP:

Without TSP

Weight (g):

TBD

LED Numbers:

6 LEDs
