3.5inch HD LCD Display Compact High Resolution And Energy Efficient
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H043HWQ40I7079 |
|
Detail Information |
|||
| Name: | 4.3 Inch | Size: | 3.5inch |
|---|---|---|---|
| Resolution: | 480(RGB)×272 | Interface: | 24bit-RGB |
| Connect Type: | Connector | Display Colors: | 16.7M |
| Technology Type: | A-Si | Display Spec.: | 0.198 X 0.198 |
| Display Mode: | Normally Black | Driver LC: | Sc7283 |
| Surface Treatment: | HC | Viewing Direction: | ALL |
| Gray Scale Inversion Direction: | Free | LCM (W X Hx D) (mm): | 105.40*67.15*2.90 |
| Active Area(mm): | 95.04 X 53.86 | With Without TSP: | Without TSP |
| Weight (g): | TBD | LED Numbers: | 12LEDs |
| High Light: | 4.3 Inch High Resolution LCD Display,High Resolution LCD Display 24bit RGB |
||
Product Description

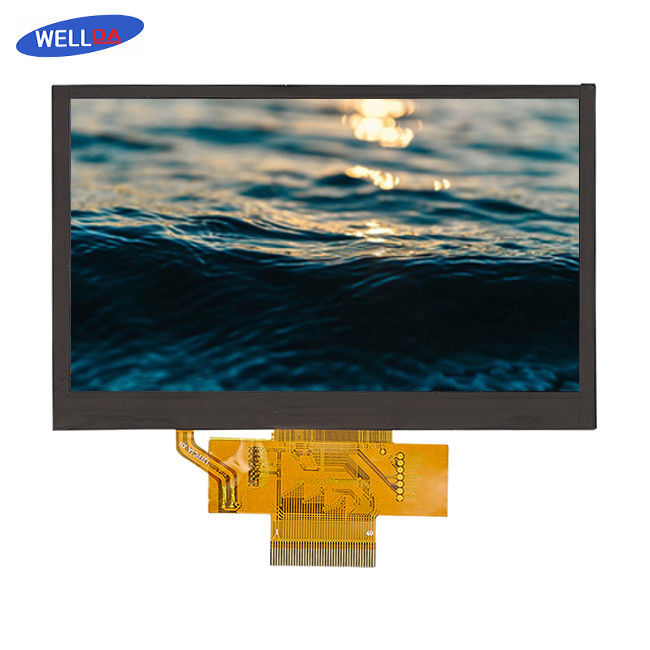

High Resolution 4.3 Inch HD LCD Display With 24bit RGB Interface
HD LCD Display Description:
Experience superior visual clarity with our 4.3 Inch HD LCD Display. This High-Resolution display features a robust 480(RGB)×272 pixel density, boasting a color spectrum of 16.7M to bring out the richest colors and most detailed images.
Our display operates on a 24bit-RGB interface, ensuring high-speed data transmission for a seamless viewing experience. It uses advanced A-Si technology, offering a Normally Black display mode for an immersive viewing experience. The display's Free Gray Scale Inversion Direction further enhances image depth and contrast.
The compact design of this LCD Display, with a dimension of 105.4067.152.90mm (LCM) and an active area of 95.04 X 53.86mm, makes it ideal for portable and space-constrained applications. The Connect Type of the display is Connector, ensuring effortless incorporation into your device.
This LCD Display is powered by a SC7283 Driver LC, with a Surface Treatment of HC, guaranteeing durability and resistance to wear and tear. It also offers a viewing direction of ALL, enabling you to experience clear images from any angle. This product comes without a TSP and is equipped with 12 LEDs. The weight of the LCD Display will be provided later (TBD).
Upgrade your device with our 4.3 Inch HD LCD Display and witness unmatched visual quality and performance!
HD LCD Display Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
HD LCD Display Parameters:
|
Name: |
4.3 Inch HD LCD Display |
Size: |
3.5inch |
|---|---|---|---|
|
Resolution: |
480(RGB)×272 |
Interface: |
24bit-RGB |
|
Connect Type: |
Connector |
Display Colors: |
16.7M |
|
Technology Type: |
A-Si |
Display Spec.: |
0.198 X 0.198 |
|
Display Mode: |
Normally Black |
Driver LC: |
Sc7283 |
|
Surface Treatment: |
HC |
Viewing Direction: |
ALL |
|
Gray Scale Inversion Direction: |
Free |
LCM (W X Hx D) (mm): |
105.40*67.15*2.90 |
|
Active Area(mm): |
95.04 X 53.86 |
With or Without TSP: |
Without TSP |
|
Weight (g): |
TBD |
LED Numbers: |
12LEDs |
