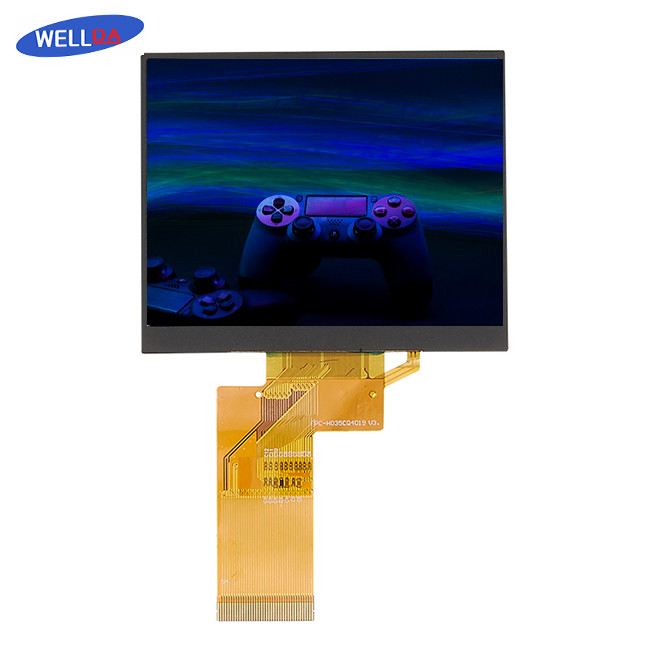

3.5 Inch TFT LCD Display Color Spectrum With HX8238D Driver
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H035CQ45E4519 |
|
Detail Information |
|||
| Name: | 3.5 Inch TFT LCD Display | Type: | TFT |
|---|---|---|---|
| Display Format: | 320 (RGB)×240 | Display Color: | 16.7M |
| Technology Type: | A-Si | Display Spec.: | 0.219x0.219 |
| Display Mode: | Normally White | Driver LC: | HX8238 |
| Surface Treatment: | Haze 20% | Viewing Direction: | 12 O'clock |
| Gray Viewing Direction: | 6 O'clock | LCM(W X HxD)(mm): | 76.84*63.84*3.15 |
| Active Area(mm): | 70.08 X 52.56 | With /Without TSP: | Without TSP |
| Weight (g): | TBD | LED Numbers: | 6 LEDs |
| High Light: | TFT LCD Color Monitor 3.5 Inch,6 LEDs TFT LCD Color Monitor |
||
Product Description
3.5 Inch TFT LCD Display Compact Vibrant Colors With HX8238 Driver
TFT LCD Display Description:
Introducing our 3.5 Inch TFT LCD Display, designed for vivid, life-like visuals. With a detailed resolution of 320 (RGB) x 240 and a broad color range of 16.7M, our TFT display provides a crisp, vibrant visual output that is sure to enhance your viewing experience.
Our TFT LCD Display operates on A-Si technology, assuring a robust and long-lasting performance. The display operates in a Normally White mode and offers excellent color reproduction and contrast with a 6 O'clock gray viewing direction.
Compact yet powerful (LCM dimensions: 76.8463.843.15mm), our 3.5 Inch TFT LCD Display boasts a generous active area of 70.08 X 52.56mm. Please note that this display does not include a TSP.
Our LCD display is driven by the HX8238 Driver LC and features a surface treatment of Haze 20%, guaranteeing a smooth viewing experience with minimized glare. It offers a 12 O'clock viewing direction for a clear, undistorted view from the top. This LCD Display houses 6 LEDs, and the precise weight will be provided later (TBD).
Choose our 3.5 Inch TFT LCD Display for superior visual quality, durability, and high performance!
TFT LCD Display Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
TFT LCD Display Parameters:
| Name: | 3.5 Inch TFT LCD Display | Type: | TFT |
|---|---|---|---|
| Display Format: | 320 (RGB)×240 | Display Color: | 16.7M |
| Technology Type: | A-Si | Display Spec.: | 0.219x0.219 |
| Display Mode: | Normally White | Driver LC: | HX8238 |
| Surface Treatment: | Haze 20% | Viewing Direction: | 12 O'clock |
| Gray Viewing Direction: | 6 O'clock | LCM(W X HxD)(mm): | 76.84*63.84*3.15 |
| Active Area(mm): | 70.08 X 52.56 | With /Without TSP: | Without TSP |
| Weight (g): | TBD | LED Numbers: | 6 LEDs |
