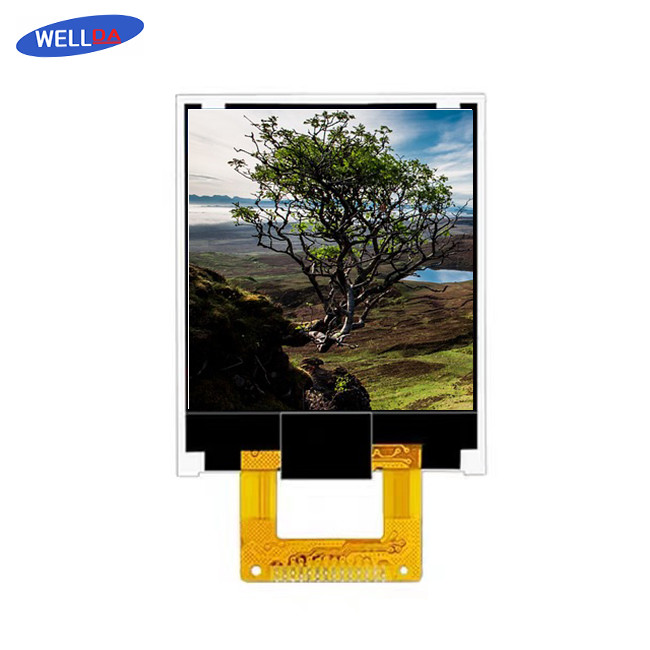

1.44 Inch TFT Wearable LCD Screen For Handheld Instrumentation

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: WellDa(OEM)
Certification: ROHS、ISO9001、CE Model Number: H128128-CSL17706A

Detail Information

Name: 1.44 Inch TFT Lcd Module Keywords: Wearable LCD Display
Size: 1.44 Inch Type: TFT
Resolution: 128x128 Interface: 4W SPI
Viewing Angle: 12 O'clock Brightness: 150 Cd/m2 (Typ.)
Driver Ic: ST7735S Display Mode: Normally Black
Operating Temperature: -20----70 °C Outline Dimensions: 29(W) X 34.21(H) X2.2 (D)
LCD Active Area: 25.5(W) X 26.5(H) Display Format: 128 X3 RGB X 128
Color Configuration: RGB Vertical Stripe Dot Pitch: 0.1992(W) (RGB) X 0.207(H)
High Light:

1.44 Inch Wearable LCD Screen

,

Wearable LCD Screen Handheld Instrumentation

,

1.44 Display Handheld Instrumentation

Product Description

Introducing The 1.44 Inch TFT LCD Module, A Wearable LCD Display Designed For Applications That Require Compactness With

Wearable LCD Display Description:



Immerse yourself in a visual treat with the 1.44 Inch TFT LCD Module, ideally suited for wearable devices. This compact display module boasts a resolution of 128x128 pixels, ensuring sharp and vivid imagery for an enhanced viewing experience. It is equipped with a 4W SPI interface, which facilitates speedy and effective data communication for top-tier performance.

The TFT LCD Module comes with a viewing angle of 12 O'clock, providing clear visibility from this optimal vantage point. It offers a brightness level of 150 Cd/m2 (Typ.), guaranteeing excellent clarity under various lighting conditions.

The driving force behind this high-performing display module is the reliable ST7735S driver IC. The display operates in the Normally Black mode, presenting high-contrast visuals for your pleasure. Its wide operating temperature range of -20----70 °C makes it highly adaptable for different environments.

Compact in its design with outline dimensions of 29(W) X 34.21(H) X2.2 (D) and an LCD active area of 25.5(W) X 26.5(H), it fits perfectly into space-conscious wearable devices. With its 128 X3 RGB X 128 display format and RGB Vertical Stripe color configuration, enjoy vibrant and rich colors on this brilliant display module. Elevate your wearable device experience with this powerful 1.44 Inch TFT LCD Module.



Wearable LCD Display Applications:



1. Portable Devices: These displays are a staple in portable electronics like smartphones, digital cameras, handheld gaming consoles, and GPS devices. Their compact size, high brightness, and resolution offer a superior user experience, enhancing the portability and functionality of these devices.

2. Industrial Applications: In industrial settings, the Small LCD Display is used in control panels, handheld instrumentation, testing equipment, and many others due to its durability and ability to operate in harsh conditions. Their ability to withstand extreme temperatures and deliver clear images makes them ideal for such environments.

3. Healthcare Equipment: Small LCD Displays are also commonly found in medical devices like portable patient monitors, handheld imaging devices, and medical wearables. The high resolution and reliable performance of these displays ensure precise readings and patient data, crucial in healthcare settings.


Wearable LCD Display Parameters:



Name:

1.44 Inch TFT Lcd Module

Keywords:

Wearable LCD Display

Size:

1.44 Inch

Type:

TFT

Resolution:

128x128

Interface:

4W SPI

Viewing Angle:

12 O'clock

Brightness:

150 Cd/m2 (Typ.)

Driver Ic:

ST7735S

Display Mode:

Normally Black

Operating Temperature:

-20----70 °C

Outline Dimensions:

29(W) X 34.21(H) X2.2 (D)

LCD Active Area:

25.5(W) X 26.5(H)

Display Format:

128 X3 RGB X 128

Color Configuration:

RGB Vertical Stripe

Dot Pitch:

0.1992(W) (RGB) X 0.207(H)
