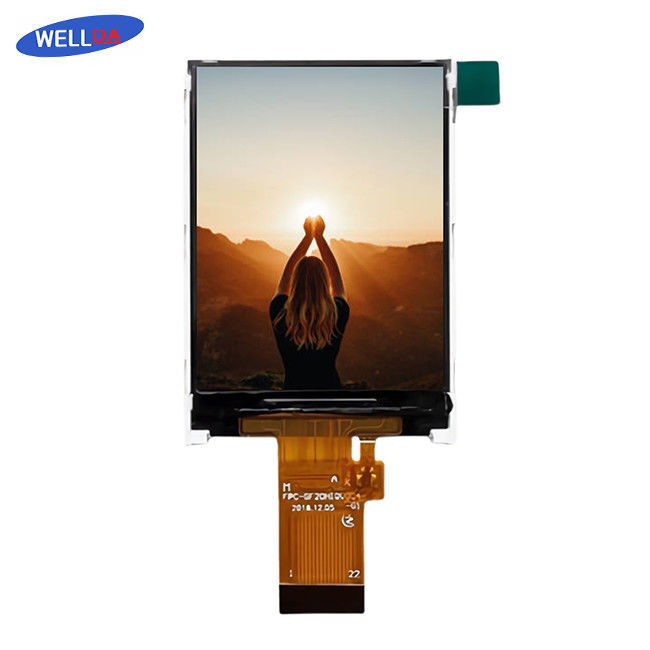

1.77" QQVGA Compact LCD Display With 2 White LED Backlighting
Contact Person : Mr. Zhu
Phone Number : +8613760373914
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | H240320-LSA20010A |
|
Detail Information |
|||
| Name: | Small LCD Display | Keywords: | 2.0 Inch TFT Lcd Module |
|---|---|---|---|
| Interface: | 8bit Parallel Data With MPU(8080-series MPU) | Brightness: | 200cd/m2 |
| Display Mode: | Normally Black | Outline Dimension: | 34.0(H)X48.38(V)X1.0(D) |
| Active Screen Size: | 2.0" Diagonal | Resolution: | 240RGBx320 |
| Pixel Driving Element: | A-Si TFT | Pixel Size: | 42.5X127.5 |
| Pixel Arrangement: | RGB-stripe | View Direction: | 6 O'clock |
| Driver IC: | HX8347D | Cell Gap: | 3.85+-0.3 |
| Peration Temperature: | -20～+70 | Storage Temperature: | -30～+80 |
| High Light: | 200cd/M2 Small LCD Screen,Small LCD Screen HX8347D IC,Tiny LCD Display HX8347D Driver |
||
Product Description
Durability Of The Small LCD Display In Extreme Conditions
Small Lcd Display Description:
The Small LCD Display utilizes the high-performance HX8347D driver IC. This advanced driver IC maintains consistent high-quality visuals, supporting the display's high-definition resolution and vibrant color output. Its cell gap stands at 3.85+-0.3, a specification that significantly improves the clarity and depth of the visuals.
Designed to perform in diverse environments, the Small LCD Display has an operational temperature range of -20～+70 degrees and a storage temperature range of -30～+80 degrees. This robustness extends its usability to applications that require reliable performance even in extreme conditions.
Small Lcd Display Applications:
1. Portable Devices: These displays are a staple in portable electronics like smartphones, digital cameras, handheld gaming consoles, and GPS devices. Their compact size, high brightness, and resolution offer a superior user experience, enhancing the portability and functionality of these devices.
2. Industrial Applications: In industrial settings, the Small LCD Display is used in control panels, handheld instrumentation, testing equipment, and many others due to its durability and ability to operate in harsh conditions. Their ability to withstand extreme temperatures and deliver clear images makes them ideal for such environments.
Small Lcd Display Parameters:
|
Name: |
Small LCD Display |
Keywords: |
2.0 Inch TFT Lcd Module |
|---|---|---|---|
|
Interface: |
8bit Parallel Data With MPU(8080-series MPU) |
Brightness: |
200cd/m2 |
|
Display Mode: |
Normally Black |
Outline Dimension: |
34.0(H)X48.38(V)X1.0(D) |
|
Active Screen Size: |
2.0" Diagonal |
Resolution: |
240RGBx320 |
|
Pixel Driving Element: |
A-Si TFT |
Pixel Size: |
42.5X127.5 |
|
Pixel Arrangement: |
RGB-stripe |
View Direction: |
6 O'clock |
|
Driver IC: |
HX8347D |
Cell Gap: |
3.85+-0.3 |
|
Operation Temperature: |
-20～+70 |
Storage Temperature: |
-30～+80 |
