Normally Black 12.3 Inch Screen

Product Description

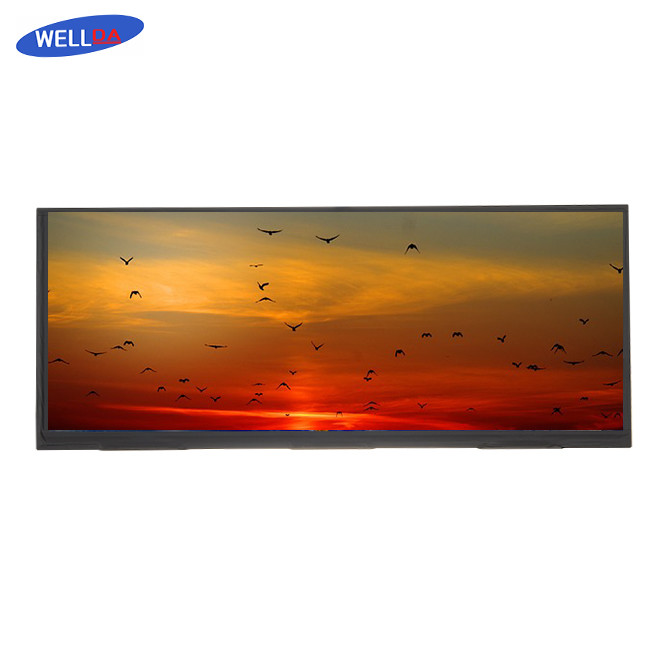

Experience High Definition With The 12.3 Inch Normally Black LCD Display Module

LCD Display Module Description:

Unveil an extraordinary viewing experience with our 12.3 Inch LCD Display Module. The large display area of 292.032(H) X 109.512(V) mm, paired with a resolution of 1920(H) X 3(RGB) X 720(V), ensures high-definition images and videos. The module features a pixel pitch of 0.1521(H) X 0.1521(V) mm and an RGB Vertical Stripe color pixel arrangement for superior color precision. The 2 Port LVDS interface enhances connectivity, and its compact size (307.9 X 130.27 X 7.0(D) mm without cover & connector) makes it a perfect fit for various applications. Operating in Normally Black mode, this display can showcase up to 16.7M colors (Real 8 Bit), providing a vivid and immersive visual experience. Enjoy a full viewing direction and fast response times (25ms (Typ.)/35ms(Max.)). With 70% NTSC, power-efficient consumption (LCD: 1.98W(TYP.) BLU: 10.04W(TYP)/11.02W(MAX)), and an LED backlight unit, this LCD Display Module is both practical and premium. Anti-Glare surface treatment and a brightness level of 800nits (TYP.)/600nits (MIN.) ensures a comfortable viewing experience. This module, certified by ROHS, ISO9001, and CE, ensures your product's compliance with quality and safety standards.

LCD Display Module Applications:

1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.

2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.

3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.

LCD Display Module Parameters:
