9 Inch LCD Display Module 800x480 Pixels Antiglare Coating For Superior Clarity
Contact Person : Mr. Zhu
Phone Number : +8613760373914
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
Place of Origin: | ShenZhen, China | Brand Name: | WellDa(OEM) |
---|---|---|---|
Certification: | ROHS、ISO9001、CE | Model Number: | H090BWV40E4002 |
Detail Information |
|||
Name: | 15.6 Inch LCD Display Module | Screen Diagonal: | 15.6 Inch |
---|---|---|---|
Active Area: | 344.16 (H)x 193.59 (V) | Pixels Hx V: | 1,920 X 1,080 |
Pixel Pitch: | 0.179(H)× 0.179 (v) | Pixel Arrangement: | R.G.B. Vertical Stripe |
Display Mode: | Normally Black | Contrast Ratio: | 1000 |
White Luminance: | 220 (Typ.) | Response Time: | 25 |
View Angle(L/R/U/D): | 89/89/89/89 | Input Voltage: | +3.3 ( Logic )/+12V ( Backlight ) |
Logic Power Consumption: | TBD | Outline Dimension: | 359.5(H)x 223.75(V)x 3.1(D) |
Electrical Lnterface (Logic): | EDP1.2 | Support Color: | 262K |
Optimum Viewing Direction: | ALL | Surface Treatment: | Anti-glare Coating: (3H) |
High Light: | 15.6 Inch TFT LCD Display,TFT LCD Display 344.16 X 193.59,TFT LCD module Vertical Stripe |
Product Description

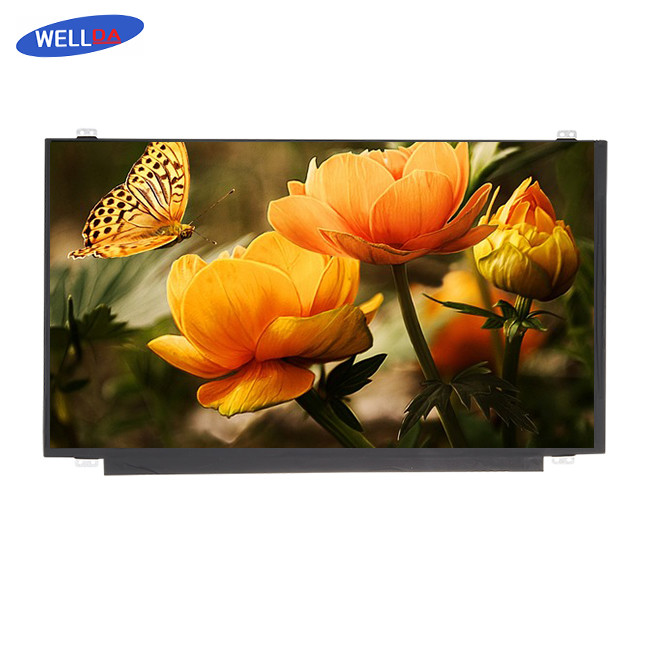

Experience Superior Clarity With The 15.6 Inch High-Resolution LCD Display Module
LCD Display Module Description:
Discover the exceptional clarity with our 15.6 Inch LCD Display Module. This module offers an active display area of 344.16 (H)x 193.59 (V) and a high resolution of 1920 X 1080, delivering detailed and crisp images. The pixel arrangement of R.G.B. Vertical Stripe and a pixel pitch of 0.179(H)× 0.179 (v) ensure precise color reproduction and clear visuals. The module operates in a Normally Black display mode, boasting a high contrast ratio of 1000 for deep blacks and bright whites. With a white luminance of 220 (Typ.), your visuals will be bright and vibrant. The module ensures quick image transitions with a response time of 25ms. Offering a wide viewing angle of 89/89/89/89, the display looks great from any direction. The module operates on an input voltage of +3.3 (Logic) and +12V (Backlight) and uses the EDP1.2 electrical interface (Logic). The display supports 262K colors and has an Anti-glare Coating (3H), offering you an exceptional, high-quality viewing experience for a range of applications.
LCD Display Module Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
LCD Display Module Parameters:
Name: |
15.6 Inch LCD Display Module |
Screen Diagonal: |
15.6 Inch |
---|---|---|---|
Active Area: |
344.16 (H)x 193.59 (V) |
Pixels Hx V: |
1,920 X 1,080 |
Pixel Pitch: |
0.179(H)× 0.179 (v) |
Pixel Arrangement: |
R.G.B. Vertical Stripe |
Display Mode: |
Normally Black |
Contrast Ratio: |
1000 |
White Luminance: |
220 (Typ.) |
Response Time: |
25 |
View Angle(L/R/U/D): |
89/89/89/89 |
Input Voltage: |
+3.3 ( Logic )/+12V ( Backlight ) |
Logic Power Consumption: |
TBD |
Outline Dimension: |
359.5(H)x 223.75(V)x 3.1(D) |
Electrical Lnterface (Logic): |
EDP1.2 |
Support Color: |
262K |
Optimum Viewing Direction: |
ALL |
Surface Treatment: |
Anti-glare Coating: (3H) |
