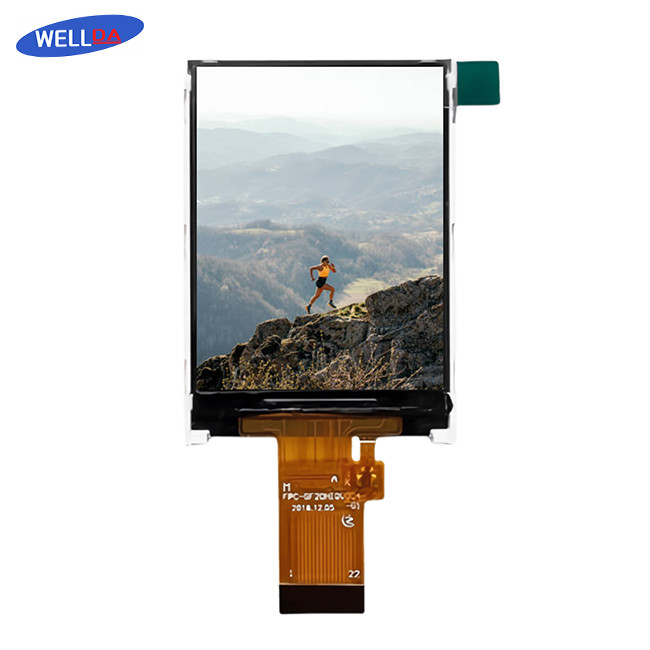

Resolution 240RGBx320 2 Inch LCD Display for Portable Devices

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: WellDa(OEM)
Certification: ROHS、ISO9001、CE Model Number: H240320-LSA20010A

Detail Information

Name: Small LCD Display Keywords: 2.0 Inch TFT Lcd Module
Interface: 8bit Parallel Data With MPU(8080-series MPU) Brightness: 200cd/m2
Display Mode: Normally Black Outline Dimension: 34.0(H)X48.38(V)X1.0(D)
Active Screen Size: 2.0" Diagonal Resolution: 240RGBx320
Pixel Driving Element: A-Si TFT Pixel Size: 42.5X127.5
Pixel Arrangement: RGB-stripe View Direction: 6 O'clock
Driver IC: HX8347D Cell Gap: 3.85+-0.3
Peration Temperature: -20~+70 Storage Temperature: -30~+80
High Light:

2 Inch LCD Display Portable Devices

,

240RGBx320 2 Inch LCD Display

,

240RGBx320 2 inch lcd screen

Product Description

Small LCD Display 2.0 Inch TFT LCD Module Compact And Efficient



Small Lcd Display Description:



The Small LCD Display is a 2.0 Inch TFT LCD Module, blending compactness with efficiency. Its 8-bit parallel data interface with an 8080-series MPU ensures a seamless viewing experience, while its brightness of 200cd/m2 ensures clear visibility. Despite its small dimensions of 34.0(H)X48.38(V)X1.0(D), it offers a substantial 2.0" diagonal active screen and a resolution of 240RGBx320. Backed by an HX8347D driver IC, it provides consistent visuals. Its durability is showcased by its operational temperature range of -20 to +70 degrees and storage range of -30 to +80 degrees, making it an ideal choice for diverse applications.



Small Lcd Display Applications:



1. Portable Devices: These displays are a staple in portable electronics like smartphones, digital cameras, handheld gaming consoles, and GPS devices. Their compact size, high brightness, and resolution offer a superior user experience, enhancing the portability and functionality of these devices.

2. Industrial Applications: In industrial settings, the Small LCD Display is used in control panels, handheld instrumentation, testing equipment, and many others due to its durability and ability to operate in harsh conditions. Their ability to withstand extreme temperatures and deliver clear images makes them ideal for such environments.



Small Lcd Display Parameters:



Name:

Small LCD Display

Keywords:

2.0 Inch TFT Lcd Module

Interface:

8bit Parallel Data With MPU(8080-series MPU)

Brightness:

200cd/m2

Display Mode:

Normally Black

Outline Dimension:

34.0(H)X48.38(V)X1.0(D)

Active Screen Size:

2.0" Diagonal

Resolution:

240RGBx320

Pixel Driving Element:

A-Si TFT

Pixel Size:

42.5X127.5

Pixel Arrangement:

RGB-stripe

View Direction:

6 O'clock

Driver IC:

HX8347D

Cell Gap:

3.85+-0.3

Operation Temperature:

-20~+70

Storage Temperature:

-30~+80
